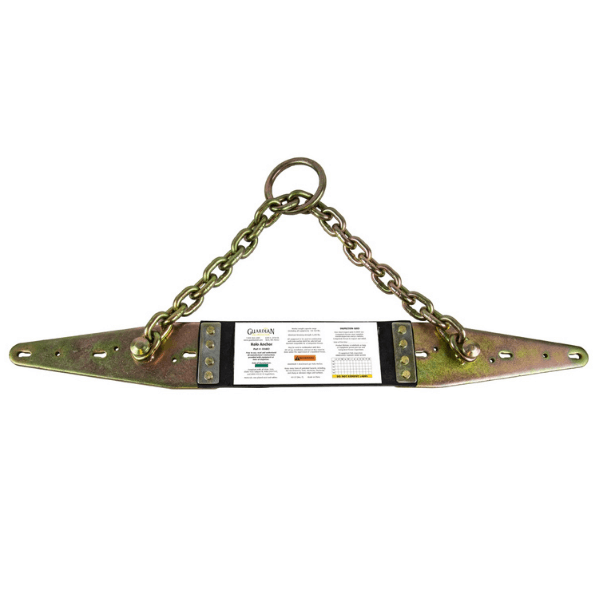

Guardian Fall Protection 00482 Halo Reusable Anchor

The Guardian Fall Protection Halo Anchor is a temporary and reusable roof anchorage connector. It is composed of 1/4 inch thick steel, a zinc-plated forged alloy steel O-ring, and can support loads up to 5,000 pounds. It may be used in both Fall Arrest and Restraint applications, and is supplied with all necessary fasteners.

FEATURES:

APPLICATIONS:

Personal Fall Arrest:

• Halo Anchors may be used in Personal Fall Arrest applications to support:

  • Maximum 1 Personal Fall Arrest System (PFAS).

  • Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs.

  • Maximum free fall is 6’ or up to 12’ if used in combination with equipment explicitly certified for such use.

  • Applicable D-rings: Dorsal

Work Positioning:

• Halo Anchors may be used in Work Positioning applications.

  • Work Positioning systems allow a worker to be supported while in suspension and work freely with both hands.
  • Structure must withstand loads applied in the directions permitted by the system of at least 3,000 lbs.
  • Maximum allowable free fall is 2’.
  • Applicable D-rings: Side.

Restraint:

• Halo Anchors may be used in Restraint applications. Restraint systems:

  • Prevent workers from reaching the leading edge of a fall hazard.

  • Always account for fully deployed length of lanyard/SRL.

  • Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs.
  • No free fall is permitted.
  • May only be used on surfaces with slopes up to 4/12 (vertical/horizontal)
  • Applicable D-rings: Dorsal, Chest, Side, & Shoulder.

Notes: Minimum Service Temperature: -30 F;

Min. Substrate thickness requirements:

• Wood: 3/4" CDX or better


• Metal: 20 guage or better;

Fasteners:

• Wood: (6) 1/4" x 3" Log Screws or (12) 16D Nails.

• Metal: (6) 1/4" x 3" metal deck screws; All fasteners must be fully embedded in substrate.

Please read and understand the manufacturer instructions before using this product.
