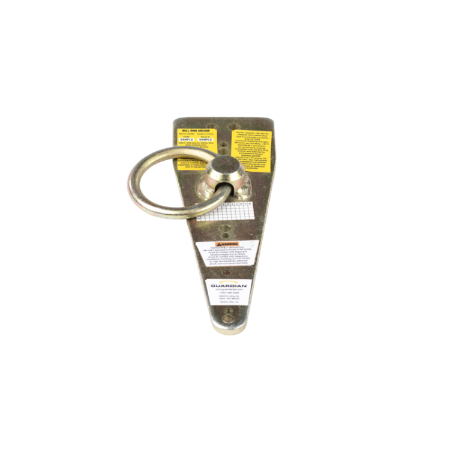

The Guardian Fall Protection Bull Ring Anchors are suitable for personal fall arrest, restraint, or work positioning applications. For all applications, the worker weight capacity range (including all clothing, tools, and equipment) is 130 to 310 pounds. The anchor itself is constructed of 100% zinc-plated steel. Substrate must be roof truss or support beam that is minimum of 3" thick CDX or better. All fasteners (use either six 16d, 3" long 8 gauge nails or three 1/4" x 3" zinc-plated steel hex head lag screws) must be fully embedded in the substrate. This particular anchor is suitable for multiple installation applications as long as new fasteners are use for each installation.
FEATURES:
- Suitable for fall arrest, restraint, or work positioning applications
- Constructed of 100% zinc-plated steel
- Suitable for multiple installation applications
- Reusable
- Can be used in wide variety of applications
- Lightweight and durable
- Compatible w/ horizontal lifelines
- Easy to install
- Fasteners Included
Specifications:
- Standards: OSHA 1926 Subpart M & 1910 ANSI Z359. 18-17* & A10.32-12
- Worker Capacity: 130-420 lbs
- Performance: Max user: 1; 5,000 lb. Min. Breaking Strength
- Materials: Galvanized Steel/Stainless Steel
Applications:
Personal Fall Arrest:
Bull Ring Anchors may be used in Personal Fall Arrest
applications to support:
- MAXIMUM 1 Personal Fall Arrest System (PFAS). Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs.
- Maximum free fall is 6’.
- Applicable D-rings: Dorsal
Restraint:
Bull Ring Anchors may be used in Restraint applications.
Restraint systems:
- Prevent workers from reaching the leading edge of a fall hazard.
- Always account for fully deployed length of lanyard / SRL.
- Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs.
- No free fall is permitted.
- Restraint systems may only be used on surfaces with slopes up to 4/12 (vertical/horizontal).
- Applicable D-rings: Dorsal, Chest, Side, Shoulder.
Work Positioning:
Bull Ring Anchors, configured with side or shoulder D-rings, may be used in Work Positioning applications.
- Work Positioning systems allow a worker to be supported while in suspension and work freely with both hands.
- Structure must withstand loads applied in the directions permitted by the system of at least 3,000 lbs.
- Maximum allowable free fall is 2’.
- Applicable D-rings: Side & Shoulder.
Notes: Min. service temp.: -30 degrees Fahrenheit; Wood substrate only, 3.5" combined thickness when installed with nails; All fasteners must be fully embedded in substrate.
