Guardian Fall Protection 00691 4-Way Plate Anchor

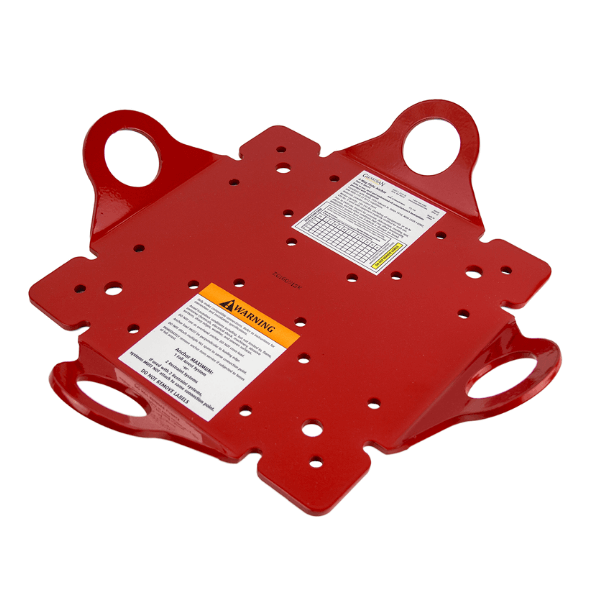

The Guardian Fall Protection 4-Way Plate Anchor supports one worker in fall arrest or two workers in fall restraint, and is suitable for installation onto wood, metal, or concrete. Its 4 connection points greatly increase the potential working range, as a worker can detach from a connection point, reattach to the opposite connection point, and be able to work in fall arrest or restraint on the other side of a building, all from the same anchor. Its 90-degree angles between its connection points also make the 4-Way Plate anchor a perfect rooftop corner joint for horizontal lifeline (HLL) systems.

Supports 1 Worker in Fall Arrest or 2 Workers in Fall Restraint

• Material: 100% 1/4" Hot Rolled Steel
• When used in combination with a horizontal lifeline system, can support 2 workers in Fall Arrest or 4 workers in Fall Restraint
• 4 connection points greatly increase the potential working range, as a worker could detach from a connection point, reattach to the opposite connection point, and be able to work in Fall Arrest or Restraint on the other side of a building, all from the same anchor
• 90 degree angles between connection points also make the 4-Way Plate Anchor a perfect rooftop corner joint for horizontal lifeline systems

Fasteners Requirements (not included)

Wood Application:

• (20) #14-10 2" Wood Screws (search for part # GUA-00668)

Metal Application:

• (20) #14-10 2" Metal Screws (search for part # GUA-00669)

Concrete Application:

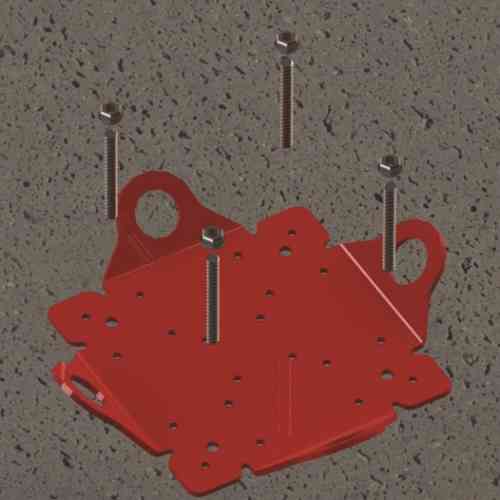

• (4) 1/2" Threaded ROD assemblies, or (4) compatible fasteners

• Concrete fasteners must be selected by a competent person

• Applicable Standards: OSHA 1910 and OSHA 1926 Subpart M
• Worker Capacity Range: 130-420 lbs.
• Material: Powder-coated steel
• Min. Breaking Strength: 5,000 lbs.

Applications:

Personal Fall Arrest:

• 4-Way Plate anchors may be used in Personal Fall Arrest applications to support:
  •  Maximum 1 Personal Fall Arrest System (PFAS).
  • Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs.
  • Maximum allowable free fall is 6’, unless used in combination with equipment explicitly certified for extended free fall of up to 12’.
  • Applicable D-rings: Dorsal.

Restraint:

• 4-Way Plate anchors may be used in Fall Restraint applications to support:
  • Maximum 2 PFAs
  • Prevent workers from reaching the leading edge of a fall hazard.
  • Always account for fully deployed length of lanyard / SRL.
  • Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs.
  • No free fall is permitted.
  • Restraint systems may only be used on surfaces with slopes up to 4/12 (vertical/horizontal).
  • Applicable D-rings: Dorsal, Chest, Side, Shoulder.



STANDARDS:
OSHA 1926 Subpart M & 1910

MATERIALS:
Powder-coated steel

WORKER CAPACITY:
130 - 420 lbs.

PERFORMANCE:

• Maximum Users:  1 in Fall Arrest; 2 in Fall Restraint
• Maximum Users with Horizontal Lifeline:  2 in Fall Arrest; 4 in Fall Restraint
• 5,000 lb. MBS (Minimum Breaking Strength)

NOTES:
• Applicable for wood, metal, & concrete applications
• Accommodates most SRLs up to 50' in length, or up to 65' if used with additional extension attachment.
