Price: $157.86
Item #GUA-00600
Write a review!
Quantity:
Overview

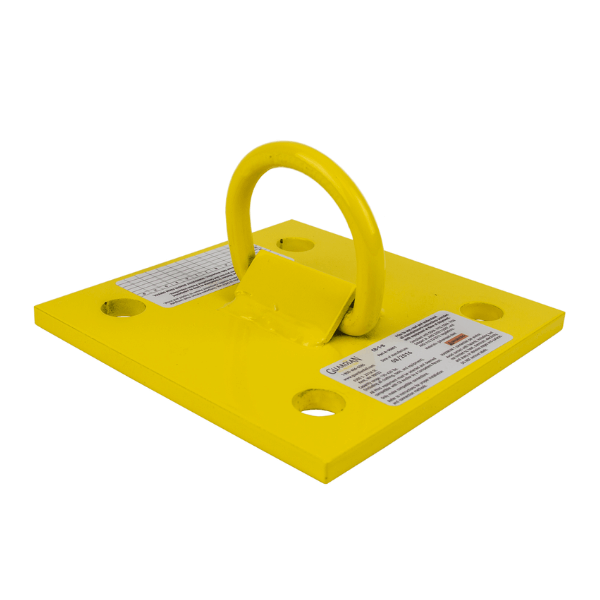

The Guardian Fall Protection CB-1-B is a 6" x 6" bolt-on anchor for wood, steel, and concrete applications, and is permitted for use in combination with horizontal lifelines. This anchor is composed of steel, and is powder-coated for additional durability. It may be used in either vertical or horizontal installation applications. Fasteners not provided.
Features: Easy to install
- Can attach to steel or concrete surfaces.
- Lightweight and Durable
- Dee ring rotates 180 degrees.
- Permanent or temporary anchor point.
- Can be used with horizontal lifeline system.
- Available with backer plate for use on steel columns.
- 6" X 6" X 1/2" base plate.
- Powder coat finish for corrosion protection.
- 5,000 lbs minimum breaking strength.
- Meets OSHA and ANSI Z359.1 requirements for anchoring devices.
- Applicable Standards: OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.18-17, and ANSI A10.32-12
- Worker Capacity Range: 130-420 lbs.
- Material: Powder-coated steel
- Min. Breaking Strength: 5,000 lbs.
Applications:
Personal Fall Arrest:
- CB-1-B anchors may be used in Personal Fall Arrest
- applications to support:-
- Maximum 1 Personal Fall Arrest System (PFAS). Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs.
- Maximum allowable free fall is 6’, unless used in combination with equipment explicitly certified for extended free fall of up to 12’.
- Applicable D-rings: Dorsal.
Work Positioning:
- CB-1-B anchors, configured with side or shoulder D-rings, may be used in Work Positioning applications.
- Work Positioning systems allow a worker to be supported while in suspension and work freely withboth hands.
- Structure must withstand loads applied in the directions permitted by the system of at least 3,000 lbs.
- Maximum allowable free fall is 2’.
- Applicable D-rings: Side.
Restraint:
- CB-1-B anchors may be used in Restraint applications.
Restraint systems:
- Prevent workers from reaching the leading edge of a fall hazard.
- Always account for fully deployed length of SRL.
Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs.
- No free fall is permitted.
- May only be used on surfaces with slopes up to 4/12 (vertical/horizontal).
- Applicable D-rings: Dorsal, Chest, Side, & Shoulder.
Rescue/Confined Space:
CB-1-B anchors may be used in Rescue/Confined Space applications.
- Rescue systems function to safely recover a worker from a confined location or after exposed to a fall.
- Structure must withstand loads applied in the directions permitted by the system of at least 3,000 lbs.
- No free fall is permitted.
- Applicable D-rings: Dorsal, Chest, & Shoulder
Specifications
STANDARDS:
OSHA 1926 Subpart M & 1910
ANSI Z359.18 -17 & A10.32 -12
Type A Anchorage Connector
MATERIALS:
Powder-coated & Galvanized Steel
WORKER CAPACITY:
130 - 420 lbs.
PERFORMANCE:
• Maximum Users: 1
• 5,000 lb. MBS (Minimum Breaking Strength)
NOTES:
• Minimum service temperature: -30°F
• Suitable for use in combination with
HLL Systems
