Price: $198.18
Item #GUA-00230
Write a review!
Quantity:
Overview

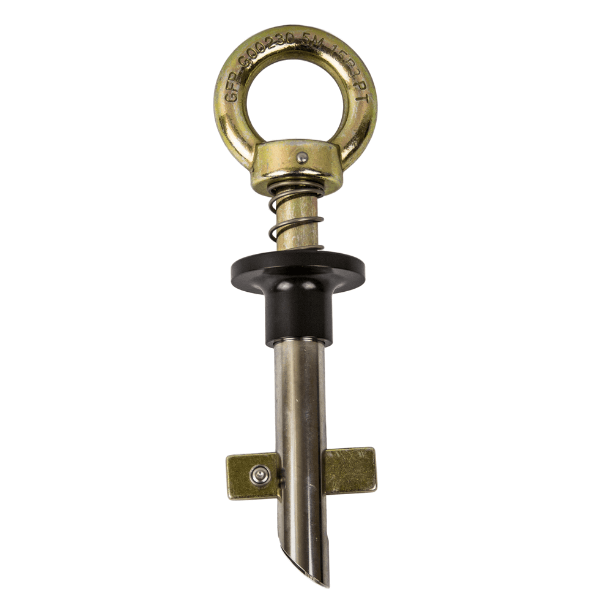

The Guardian Fall Protection Bolt Hole Anchor is a reusable 5,000 pound certified anchorage connector that can be used in either horizontal or vertical applications. Incredibly easy to install, the Bolt Hole Anchor simply needs to be squeezed to release its locking mechanism, inserted into a compatible hole ranging from 3/4" to 1—1/4" in width, and then released to reengage the locking mechanism.
Features:
- Easy to install
- Compatible with horizontal lifelines
- Squeeze to open, release to lock
Applicable Standards: ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Worker Capacity Range: 130-420 lbs.
Material: Galvanized steel
Min. Breaking Strength: 5,000 lbs.
Specifications
| Finish | : | Galvanized |
| Type | : | Bolt Hole |
| Size | : | 2-1/2 in Width, 8-1/2 in Length, 2 in Height |
| Material | : | Steel |
