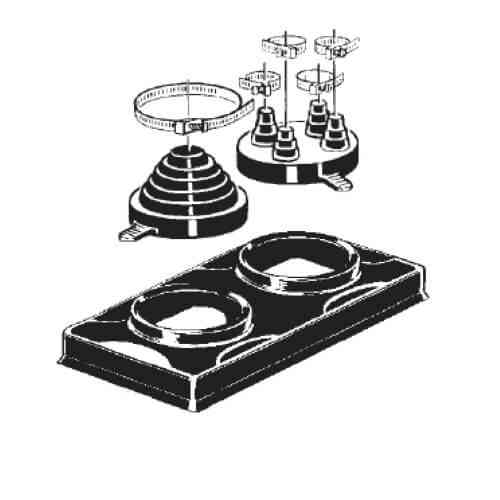

Portals Plus 36002, Double Pipe Portal Cover with 126 & 212 Caps, Tan

Double RC-4C Raised Canted Curb for decks with rigid insulation  Portals Plus #32181 Galvanized Steel Curb, 12x27.5 inch top, 9.5 inch high, Raised Canted Wall, Type RC-4A curb. Fits Double Portal Cap #29305. Overall size 27.5 inch long x 12 inch wide x 9.5 inch high. The base roof curb is used together with an upper double Pipe Portal System and appropriate caps (typical is shown in black, not included) to create a versatile, leak proof, and weather tight solution to routing pipes...

Double RC-2A Straight Sided Curb for decks with lightweight fill  Furnish and install the Portals Plus Double Pipe Portal at all points where up to two pipes .375" - 1" in diameter, up to two pipes 1" - 2" in diameter and one pipe 2" - 6" in diameter penetrate the roof.The Pipe Portal shall include an 18 gauge galvanized roof curb model RC-___A with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" 3lb. rigid fiberglass insulation. The Pipe...

Double Cover Only for *DBL Roof Curbs Pipe Portal Systems  A laminated, acrylic coated, ABS plastic curb cover with pre-punched 8" holes and molded sealing ring. Does not include pips curb caps.

Furnish and install the Portals Plus Double Pipe Portal at all points where up to six pipes .375" - 1" in diameter and two pipes 1" - 2" in diameter penetrate the roof. The Pipe Portal shall include an 18 gauge galvanized roof curb model RC-___A with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" 3lb. rigid fiberglass insulation. The Pipe Portal shall be furnished with a laminated, acrylic coated, ABS plastic curb cover with prepunched holes and...
