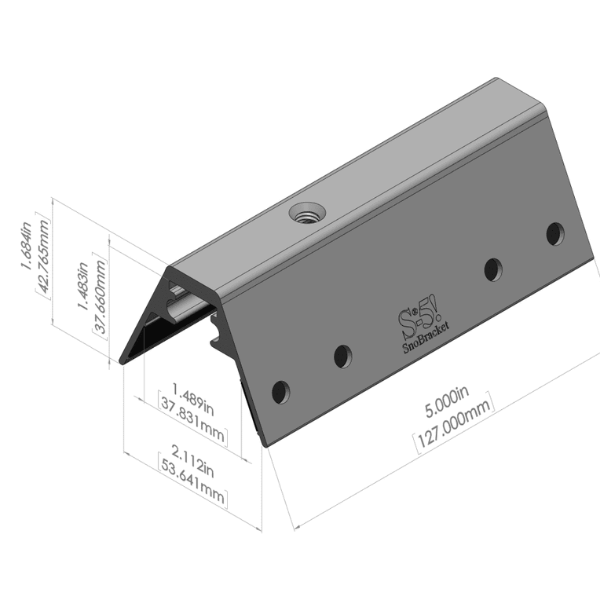

Name: S-5 SnoBracket TB
Brand: S-5 Clamps
SKU: S-5-SNOBRACKET-TB
Price: 9.90 USD
Availability: InStock

Need Help? Call Us: (1) 800-859-4077

Compatible with 1.22" (31 mm) horizontal top dimension trapezoidal profiles such as:

KingSpan KingRib
Vicwest HR3/HR5
AWIP HR3/HR5
and similar profiles

Each SnoBracket includes eight (8) 1″ self-piercing screws and one M8 x 16/17mm bolt.

Price: $9.90

Item #S-5-SNOBRACKET-TB

Quantity:

Description

SnoBracket TB - Tailored for U.S. and international markets SnoBracket comes in two sizes to fit popular Insulated Metal Panels

Placing snow retention systems on Insulated Metal Panels (IMPs) is easy using attachments built to restrain potentially dangerous accumulated snow loads and maintain your panels’ high insulating values. SnoBracket TB is a bracket created specifically for exposed-fastened IMPs that mounts directly to the roof panel (not thru to the structure), and it fits many IMP rib profiles like Metl-Span LS-36 and other similar profiles. Other panel profiles can use the SnoBracket RB. When paired with S-5! ColorGard®, SnoBracket TB is an ideal snow retention solution in a durable, watertight and proven system.

Protect Your Insulated Metal Roof’s Thermal and Moisture Barrier

Insulated Metal Panels (IMPs) deliver energy savings, comfort and protection against condensation. SnoBracket TB protects your IMP investment by securing into the upper portion of the panel only without touching or bridging to the building structure. SnoBracket TB protects your roof with factory-applied, closed-cell premium EPDM rubber gaskets, creating a positive seal against water intrusion.

Angled Attachments Provide Greater Strength

SnoBracket TB attaches to your Insulated Metal Panel’s trapezoidal rib in shear using a total of eight (8) 1-inch self-piercing fasteners (four (4) fasteners on each side). This design converts direct forces into shear forces, with the diagonal placement resulting in much greater holding capacity than direct pull-out fastening.

FEATURES & BENEFITS:

SnoBracket TB fits 31mm (1.22″) wide (top dimension) trapezoidal panel profiles such as KingSpan KingRib, Vicwest HR3/HR5, AWIP HR3/HR5 and similar profiles.
SnoBracket RB fits 25.4mm (1″) wide (top dimension) trapezoidal panel profiles such as Metl-Span LS-36 and similar profiles
Panel Rib only attachment prevents thermal bridging and provides proven, tested strength
100% compatible with S-5! ColorGard Snow Retention system
ASTM E2140 testing and factory applied EPDM sealing technology prevents leaks
Corrosion resistant aluminum lasts the life of your roof
Endorsed by multiple IMP manufacturers

Each SnoBracket TB includes eight (8) 1″ self-piercing screws and one M8 x 16/17mm bolt.
