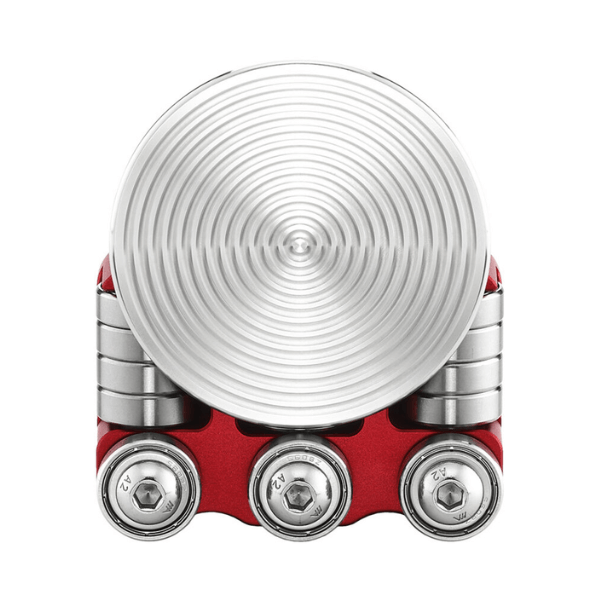

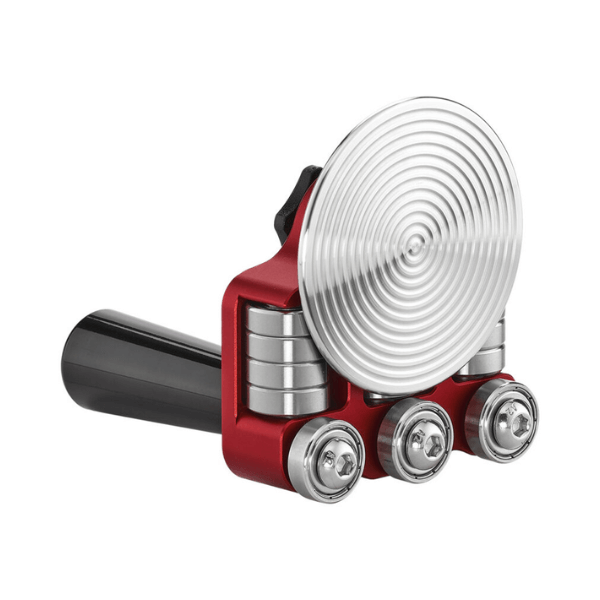

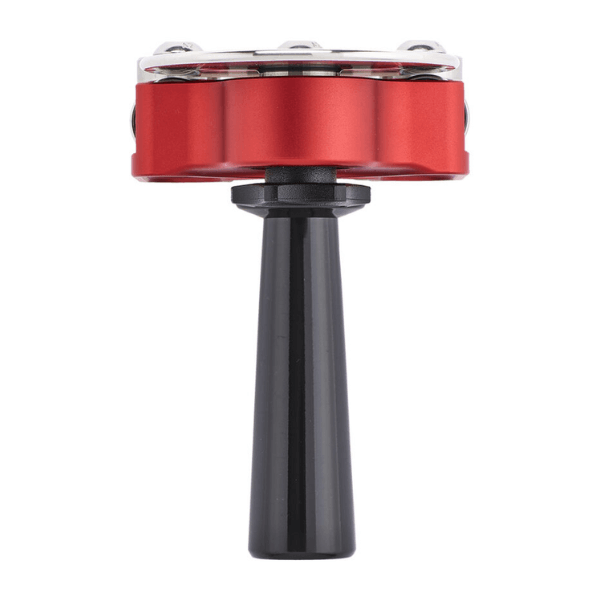

Malco, FS1DS - 1 Station Disc, Small

When you need to get the job done right and on time, you need professional-grade Metal Disc Benders by Malco, featuring removable discs for quick disassembly and mid-panel tool removal.

Why choose a 1-station model? These tools are best for short bends and curves!

Form 90°-180° bends to create hems and other details in any panel length on the jobsite, without waiting on wholesale roll formers. Metal Disc Benders by Malco are designed to form bends in a wide variety of materials for finishing custom straight or curved metal roofing details such as open hems for facia details, ridge caps and other interlocking features. HVAC pros can also use Malco’s Disc Benders for field-forming ductwork and creating open hems to prepare for drives.

Three sets of bearing guides glide smoothly along material to follow the initial bend. Pair with the removable Disc Handle (FSH1) to make cross breaks in material, create designs and start bends on flat panels.

HVAC pros may also wish to pair the Disc Benders with a 1-Station or 2-Station Metal Bender to field-form rope hems and closed hems on the jobsite.

Malco’s Metal Disc Benders are built tough with premium CNC aluminum and stainless-steel components for more durability and stability, allowing for more precise and higher quality bends.

Features

• Capacity of materials: 24 ga steel, 26 ga stainless steel, .040″ aluminum, 20 oz copper, 1 mm zinc
• Small 1-Station Disc (FS1DS): Makes 5/16″ – 1 1/8″ (8 – 30 mm) curved or straight bends
• Bend radius of .059″ (1.5mm

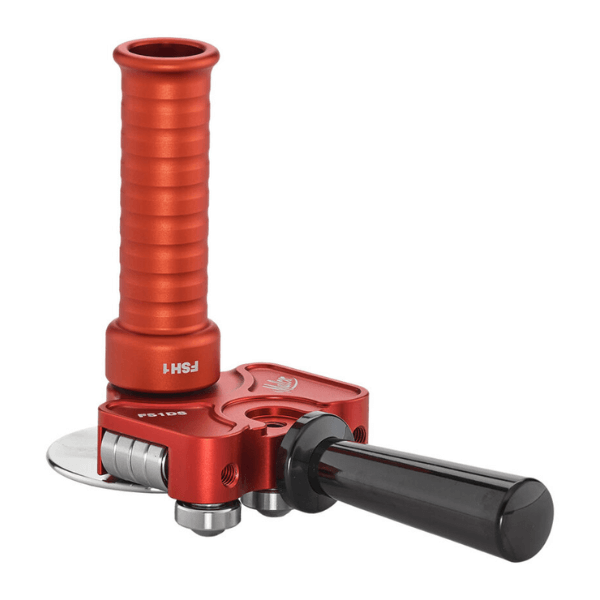

• Pair with removable Disc Handle (FSH1) to make cross breaks in material, create designs and start bends on flat panels
• Removable handle allows for compact storage
• Quick setup, lightweight and highly portable
• Premium CNC aluminum and stainless-steel components are built tough, resist corrosion and make the product more stable for precise bends

• Bending Capacity : Steel - 24-Gauge
• Bending Capacity : Stainless Steel - 26-Gauge
• Bending Capacity : Aluminum - .040
• Bending Capacity : Copper - 20 oz
• Bending Capacity : Zinc - 1mm
• Bend Depth - 5/16 in. - 1 1/8 in. (8mm - 30mm)
• Bend Range - 90-180 degrees
• Bend Radius - .059" (1.5mm)

Q: What are the primary advantages of choosing Malco's 1-station model Metal Disc Benders?

A: The 1-station model is best suited for tasks that involve short bends and curves. It provides precision and control for forming bends from 90° to 180°, allowing for the creation of hems and other custom details directly on the jobsite. This model is ideal for projects where quick setup and maneuverability are essential.

Q: What types of bends can Malco's Metal Disc Benders create?

A: These benders can form both curved and straight bends, ranging from 5/16″ to 1 1/8″ (8 mm to 30 mm) in depth. This versatility allows for the customization of metal roofing details such as open hems for facia, ridge caps, and other interlocking features without the delay of waiting for offsite roll formers.

Q: How portable and convenient are Malco's Metal Disc Benders for onsite use?

A: Malco's 1-station model is designed for quick setup, lightweight portability, and compact storage. The removable Disc Handle (FSH1) facilitates easy handling and allows for space-saving storage, making it practical for use in diverse jobsite environments.
