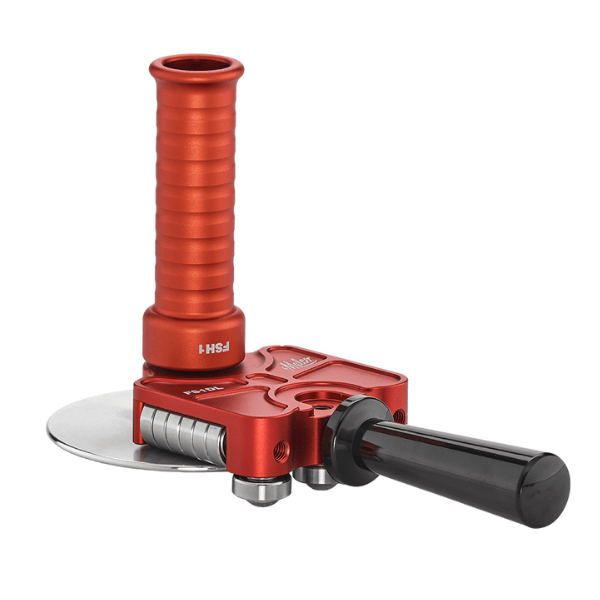

Malco, FS1DL - 1 Station Disc, Large

When you need to get the job done right and on time, you need professional-grade Metal Disc Benders by Malco, featuring removable discs for quick disassembly and mid-panel tool removal.

Why choose a 1-station model? These tools are best for short bends and curves!

Form 90°-180° bends to create hems and other details in any panel length on the jobsite, without waiting on wholesale roll formers. Metal Disc Benders by Malco are designed to form bends in a wide variety of materials for finishing custom straight or curved metal roofing details such as open hems for facia details, ridge caps and other interlocking features. HVAC pros can also use Malco’s Disc Benders for field-forming ductwork and creating open hems to prepare for drives.

Three sets of bearing guides glide smoothly along material to follow the initial bend. Pair with the removable Disc Handle (FSH1) to make cross breaks in material, create designs and start bends on flat panels.

HVAC pros may also wish to pair the Disc Benders with a 1-Station or 2-Station Metal Bender to field-form rope hems and closed hems on the jobsite.

Malco’s Metal Disc Benders are built tough with premium CNC aluminum and stainless-steel components for more durability and stability, allowing for more precise and higher quality bends.

Features

• Capacity of materials: 24 ga steel, 26 ga stainless steel, .040″ aluminum, 20 oz copper, 1 mm zinc
• Large 1-Station Disc (FS1DL): Makes 5/16″ – 1 3/4″ (8 – 45 mm) curved or straight bends
• Bend radius of .059″ (1.5mm)
• Pair with removable Disc Handle (FSH1) to make cross breaks in material, create designs and start bends on flat panels
• Removable handle allows for compact storage
• Quick setup, lightweight and highly portable
• Premium CNC aluminum and stainless-steel components are built tough, resist corrosion and make the product more stable for precise bends

• Bending Capacity : Steel - 24-Gauge
• Bending Capacity : Stainless Steel - 26-Gauge
• Bending Capacity : Aluminum - .040
• Bending Capacity : Copper - 20 oz
• Bending Capacity : Zinc - 1 mm
• Bend Depth - 1/16 in.-1 3/4 in. (8mm-45mm)
• Bend Range - 90-180 degrees
• Bend Radius - .059" (1.5mm)

Q: What are the advantages of choosing Malco's 1-station model Metal Disc Benders?

A: Malco's 1-station model is ideal for tasks requiring short bends and curves. It allows for precise bending from 90° to 180°, making it perfect for creating hems and other custom details directly on the jobsite without relying on wholesale roll formers. This model is particularly suited for projects where quick setup and maneuverability are essential.

Q: What types of bends can Malco's Metal Disc Benders create?

A: The Large 1-Station Disc (FS1DL) can create both curved and straight bends ranging from 5/16″ to 1 3/4″ (8 mm to 45 mm) in depth. This versatility enables the formation of various metal roofing details such as open hems for facia, ridge caps, and other interlocking features, enhancing flexibility and efficiency onsite.

Q: How portable and user-friendly are Malco's Metal Disc Benders?

A: Designed for quick setup and ease of use, Malco's benders are lightweight, highly portable, and feature a removable Disc Handle (FSH1) for added versatility. This handle facilitates making cross breaks in material, creating designs, and starting bends on flat panels. It also allows for compact storage, enhancing convenience and practicality on the jobsite.
