Price: $63.45
Item #POR-29225
Write a review!
Quantity:
Description

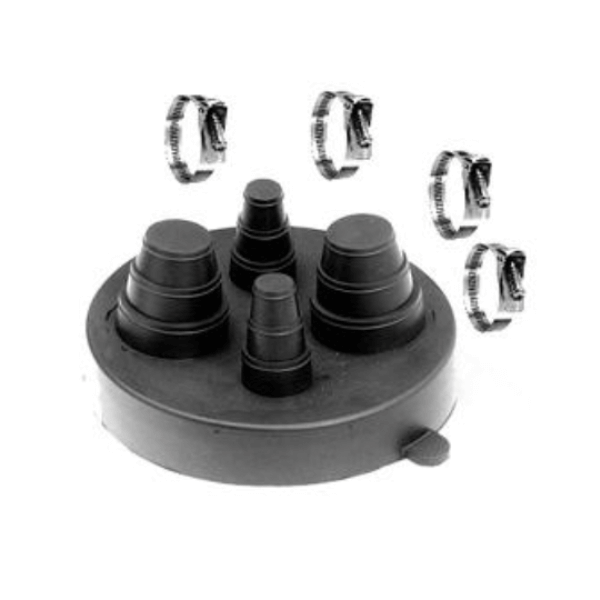

Black cap for Alumi-Flash
- Each boot can handle up to four pipes.
- 2 pipes 3/8 to 1-inches.
- 2 pipes 1 to 2 inches OD.
- Four stainless steel adjustable clamps are provided to secure the cap around pipe penetrations. The flexible EPDM cap eliminates roof leaks because penetrations can expand, contract, and vibrate independently of the roofing system.
- Used together with Alumi-Flash or Plasti-Flash Base.
- The EPDM cap is mechanically sealed to a Alumi-Flash or Plasti-Flash base (not supplied) by a double "Weather-Tite Pressure Seal", which consists of two beads formed into the collar of the base that mate with double grooves molded into the inside of the cap.
- The Portals Plus Alumi-Flash provides a permanent, watertight, and maintenance-free means for penetrating roofs that is simple and easy to install. Optional adapter Rings can modify these penetrations.
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
Portals Plus 24025, Alumi-Flash Extra Tall Base w/212...
Extra Tall Base w/212 Black Cap
Price: $208.45
Availability: In Stock
Usually ships within 1-2 Business Days
Furnish and install the Portals Plus Extra Tall Alumi-Flash at all points where up to two pipes .375" - 1" in diameter and up to two pipes 1" - 2" in diameter penetrate the roof.The Extra Tall Alumi-Flash shall include a.060" spun aluminum base unit with a height of 13" and a base diameter of 14". The 8" collared opening shall have two beaded sealing rings roll-formed into the top edge. An EPDM (Ethylene Propylene Diene Monomer)compression molded cap model C-212 shall be utilized. All Caps...
Portals Plus 23025, Alumi-Flash Extra Wide Base w/212...
Extra Wide Base w/212 Black Cap
Price: $128.95
Availability: In Stock
Usually ships within 1-2 Business Days
Features: Furnish and install the Portals Plus Extra Wide Alumi-Flash at all points where up to two pipes .375" - 1" in diameter and up to two pipes 1" - 2" in diameter penetrate the roof.The Extra Wide Alumi-Flash shall include a .060" spun aluminum base unit with a height of 4" and a base diameter of 18". The 8" collared opening shall have two beaded sealing rings roll-formed into the top edge.An EPDM (Ethylene Propylene Diene Monomer) compression molded cap model C-212 shall be utilized.All...
Portals Plus 32015, Curb Cover w/212 Cap - Black
Small Cover & Cap w/ C-212 Black Cap
Price: $135.95
Availability: In Stock
Usually ships within 1-2 Business Days
Pipe Portal with C-212 Cap Furnish and install the Portals Plus Pipe Portal System at all points where up to two pipes .375" - 1" in diameter and two pipes 1" - 2" in diameter penetrate the roof. The Pipe Portal shall include an 18 gauge galvanized roof curb model RC-___A with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" 3lb. rigid fiberglass insulation. The Pipe Portal shall be furnished with a laminated, acrylic coated, ABS plastic curb cover...
Portals Plus 29225, C212 Black Cap w/Clamps
All Caps include stainless steel Snaplock Clamps.
Price: $63.45
Availability: In Stock
Usually ships within 1-2 Business Days
Black cap for Alumi-Flash Each boot can handle up to four pipes.2 pipes 3/8 to 1-inches.2 pipes 1 to 2 inches OD.Four stainless steel adjustable clamps are provided to secure the cap around pipe penetrations. The flexible EPDM cap eliminates roof leaks because penetrations can expand, contract, and vibrate independently of the roofing system.Used together with Alumi-Flash or Plasti-Flash Base.The EPDM cap is mechanically sealed to a Alumi-Flash or Plasti-Flash base (not supplied) by a double...
