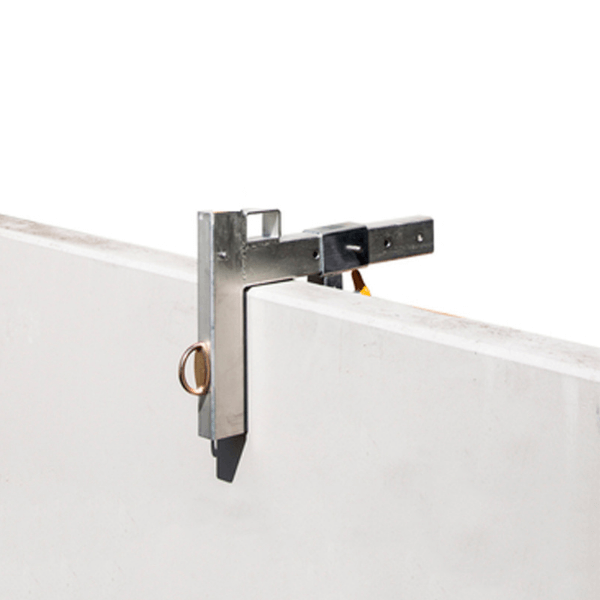

The Parapet Anchor System can be used for the placement of guardrail uprights, single point tie-off, or in conjunction with a horizontal rope lifeline. This product meets OSHA standards for guardrail and anchor point purposes. This anchor system acts as a single point tie-off and also integrates a safety pin for secure set up and adjustment so that the parapet anchor can fit a wall from four inches (4") to twenty inches (20") in width. The product is reinforced for long life, rated for 5,000 pounds, and can be used with shock absorbing lanyards and retractables. The Parapet Anchor System has large easy-to-grip adjustment handles for quick set-up and proper securement. However, only one option may be performed at a given time (e.g., You cannot use the guardrail system while using the single point tie-off).
Guardrail Posts Not Included*
52" Guardrail Post: https://www.bigrocksupply.com/...
65" Guardrail Post: https://www.bigrocksupply.com/...
Features:
- Adjusts to fit parapet walls between 4” – 20” wide
- Can be used as a single anchor point for fall arrest
- OSHA compliant guardrail system
- Easy installation
Applicable Standards: OSHA 1910 & OSHA 1926 Subpart M
Material: Galvanized Steel
Compliant with all OSHA 1910, OSHA 1926 Subpart M, ANSI Z359.1-07, & ANSI A10.32-12 Regulations.
Application:
Personal Fall Arrest:
Parapet Anchors may be used to support a MAXIMUM 1 Personal Fall Arrest System (PFAS) for use in Fall Arrest applications. Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs. Maximum free fall is 6‘, or up to 12’ if used in combination with equipment explicitly certified for such use. Applicable D-ring: Dorsal.
Restraint:
Parapet Anchors may be used in Restraint applications. Restraint systems prevent workers from reaching the leading edge of a fall hazard. Always account for fully deployed length of lanyard/SRL. Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs. No free fall is permitted. Restraint systems may only be used on surfaces with slopes up to 4/12 (vertical/horizontal). Applicable D-rings: Dorsal, Chest, Side, Shoulder.
