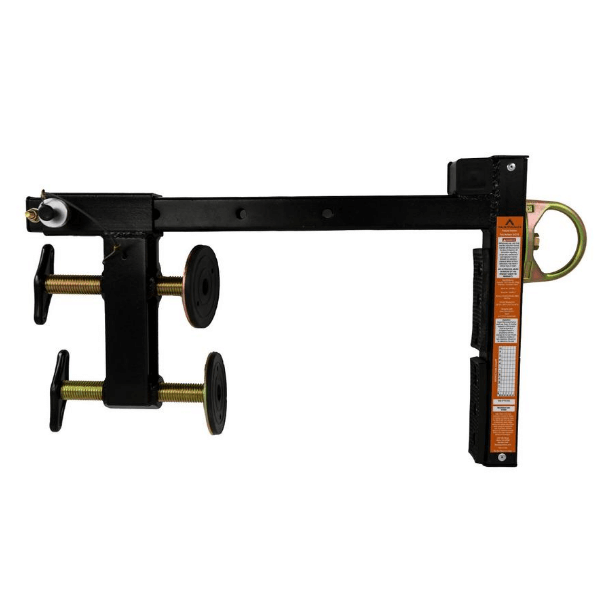

Malta Dynamics A6316 - Parapet Anchor

Does your jobsite feature a flat roof surrounded by a parapet wall? If it does, then you need a way to anchor your self-retracting lifelines (SRLs). Malta Dynamic's parapet clamp system allows you to put your SRL in place with a sturdy connection that helps support weight and keep your workers safe. The reusable device is easy to install and won’t cause damage to the wall. Your workers can use our parapet anchor on walls varying in thickness from 2.36″ to 14.1″.

On a jobsite, time is critical, but you never want to compromise your workers’ safety. Equipment that offers intuitive usage is the best type to have on your site, as it cuts back on time without putting your employees in danger. It takes just a minute or two to secure the parapet clamp, and your workers can adjust it to reposition around the worksite.

You can feel confident in the sturdiness of our design. Our temporary parapet edge protection provides a practical solution in areas where you otherwise couldn’t use an SRL.

Put Safety First When You Use Our Parapet Grabber

The anchor comes with specific directions for installation and application. Ensure your workers read and understand the instructions, as their safety depends on using the parapet clamp correctly. For example, you need a minimum wall height of 9′ to use our parapet anchor.

Instructions for Installation of Parapet Clamp Fall Protection

The Parapet Anchor is intended to be installed on a parapet wall up to 14.1 inches (360mm) thick.

1. Unscrew the set screws so the points do not protrude into the anchor slot.
2. Remove the detent pin and move the adjustable arm back far enough to allow the clamp to fit over the parapet wall.
3. Make sure the top surface within the anchor slot is fully seated on the parapet wall.
4. Slide the adjustable arm toward the parapet wall and reinsert the locking pin through the position setting holes.
5. Tighten each set screw until it makes contact with the parapet wall. Hand tighten the screws until snug. Excessive torque can damage the parapet wall or the parapet wall anchor.

Key Features:

• Non-penetrating design to eliminate parapet wall damage
• No Installation tools required- Dual tightening handles for even force distribution
• Rubber protective pads to eliminate damage to the parapet wall
• Reusable

• Minimum wall thickness - 2.36"
• Maximum wall thickness - 14.1”
• Overall length - 25.5”
• Overall height - 14.25
• Main body - Alloy Steel
• D-ring - Zinc Plated Steel
• Set Screws - Zinc Plated Steel
• Protective Rubber Pads
• Max User Capacity - 130-310 lbs.
• Minimum wall height - 9”
