New!
*Free Freight Terms Do Not Apply*
Price: $172.35
Item #TRA-19959
Write a review!
Quantity:
Description

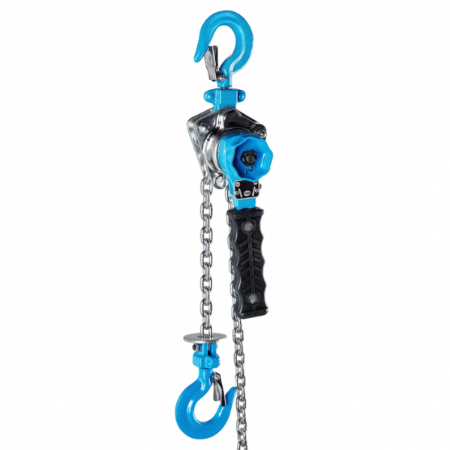

The bravo™ lever hoist is ideal for industrial and building/civil engineering applications. It is designed for pulling, lifting, positioning and adjusting loads in workshops and/or building sites.
Suitable for a wide variety of lifting, pulling and tensioning applications: for lifting and lowering loads in manufacturing and assembly operations, removing engines, rigging and moving loads, applying tension to conveyor.
The bravo™ is a rugged, quality built hoist designed for reliable operations even in the toughest conditions.
BENEFITS
- Easy operation with simple controls
- Compact and lightweight
- Excellent weight / capacity / size ratio
- Minimum effort to lift maximum load
FEATURES
- Working Load Limit: 500 lbs. / 1/4 Ton
- 5 Feet Lift Length
- Load Chain Size : 4 x 12 mm
- Number of Falls: 1
- Effort on lever at capacity: 57 lbs. / 26 kg
- 360° swivel hook with overload opening indicators
- Removable large-opening swivel hook with large latch marked with working load limit of the hoist
- Five sprocket load wheel with closed bearings
- Free wheel safety device activates braking mechanism when load applied in neutral position
- The hoist and its components are made of high tensile alloy steel
- Anti-corrosion treated lifting and handling line
- Operates in temperatures between -40 and 140°F (-40 and 60°C)
- Wind-through chain system for fast hook positioning
- Automatic brake with double ratchet
STANDARDS
- Meets or exceeds ANSI/ASME B30.21C, Manually Lever-Operated Hoist code.
- Load chain manufactured in accordance with ISO T
Specifications
- Chain Length: 5 ft
- Lever Length: 9.2 in
- Manufacturers Warranty Length: 1 year
- Item: Lever Chain Hoist
- Load Capacity: 500 lb
- Hoist Lift: 5 ft
- Includes: Bravo 1/4T Lever Chain Hoist, Bravo 1/4T Lever Chain Hoist, 5 ft corrosion resistant chain
- Hook Opening: 1.1 in
- Chain: Corrosion Resistant Chain
- Standards: Meets or exceeds ANSI/ASME B30.21C
- Hoist Mount: Lever Hoist
- Pull to Lift Rated Load: 57 lb
- Brake: Automatic brake with double ratchet
- Finish: Alloy steel
- Material: High tensile alloy steel
