Super Anchor Safety 1301-G CRA D-Plate Anchor for Facade Maintenance & Cal-OSHA Tie-Back

CRA D-Plate Anchor for Façade Maintenance & Cal-OSHA Tie-Back:

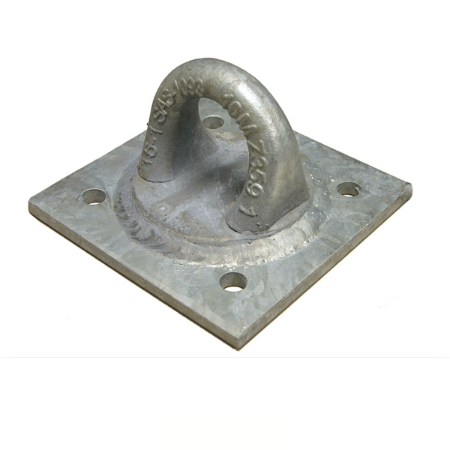

This version of our D-Plate anchor has the 2.0” ID cast loop top welded to it. This top is strong enough to meet the Cal-OSHA standard for window washing tie-back as well as our stringent requirement for façade access/maintenance equipment tie-back. The low-profile single user CRA D-Plate anchor is designed to be installed onto wood, steel, CMU walls, concrete embedded or concrete structure and can be utilized for fall protection, window washing suspension or as a horizontal lifeline intermediate anchor. This anchor comes pre-engineered to be installed with bolts, wedge anchors or field welds for installation on walls, floors, ceilings and other areas where applicable. It measures 6” x 6” and has our cast loop top welded to the plate.

The D-plate is not designed as a roof mounted anchor point as there is no way to waterproof it. Exterior wood framed walls can be flashed, and concrete/masonry walls require caulking on the edges. Fasteners are supplied by the customer. A variety of coatings/materials are available: galvanized, powder coated and stainless steel. Backer plates are also available.

• STRUCTURE ATTACHMENTS: Wood Beams, Wood Trusses, Steel Decking, Structural Steel, Masonry, CMU and Concrete
• ATTACHMENT HARDWARE: ½” Grade-8 Bolts, A-307 Threaded Rod, Concrete Wedge Anchors and Field Welds
• FALL PROTECTION CONFIGURATIONS:
  • Stand Alone Anchor/Tie-Back Anchors for Fall Protection
  • Cable Pass-Thru systems
  • Window Washing Tie-Back Anchors

• Device: Permanent anchors for structure. See Instruction Manual for Ratings
• Riser Height: 2″
• Fall Protection Rating: Fall Arrest, 1 person
• Anchor Service Radius: 360-degrees

• Minimum Breaking: 10,000 pounds
• Minimum Tensile: 5,000 pounds
• Ultimate Strength: 5,000 pounds minimum in any direction of applied load
• Proof Loading: 2,500 pounds maximum for part numbers with “W” suffix
• 4-to-1 Design Load: 1,250 pounds
• Material Domestic: A-36 Steel, 316 Stainless Steel
• Material Imported: Material Imported
• Finish: ASTM 123 or Hot Dip Galvanized (HDG)
• Temperature Rating: -30 degrees Fahrenheit up to 130 degrees Fahrenheit
• Maximum User Weight: 340 pounds including tools and equipment
• 3rd Certification: Dynamark & D.H. Glabe
• OSHA Standard: 1926:502 and 1910.140913)
• ANSI Standard: Z359.1-07 and A10.32-2012
• CSA Standard: Z259.11-05 for applicable products
• IWCA Standard: 1-14.1 Window Washing
• Cal-OSHA Standard: Title 8, section 3291 Roof Tie Backs where applicable

• Connector Type: 2″ Loop Top
• Plate Size: 6″x6″x3/8″
• Material Finish: HDG Steel
• Weight: 6.2 lbs
• Use Rating: 1 person PPE Anchor, Window Washing, HLL Systems, Façade Access & Cal-OSHA Window Washing
