Price: $62.00
Item #SAS-1029-S
Write a review!
Quantity:
Description

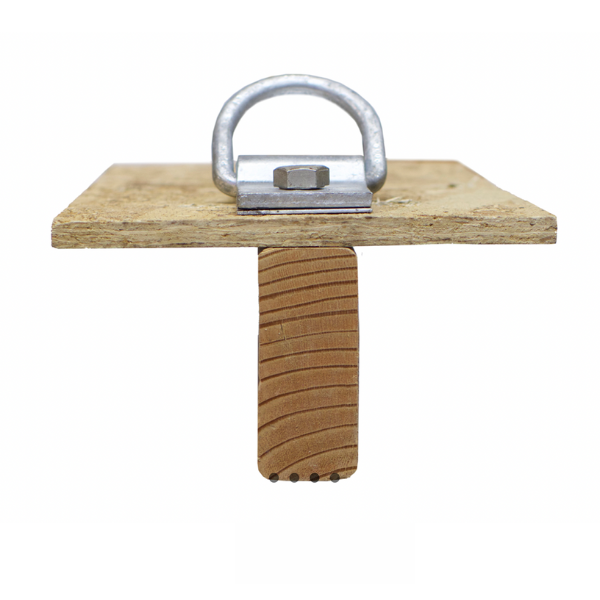

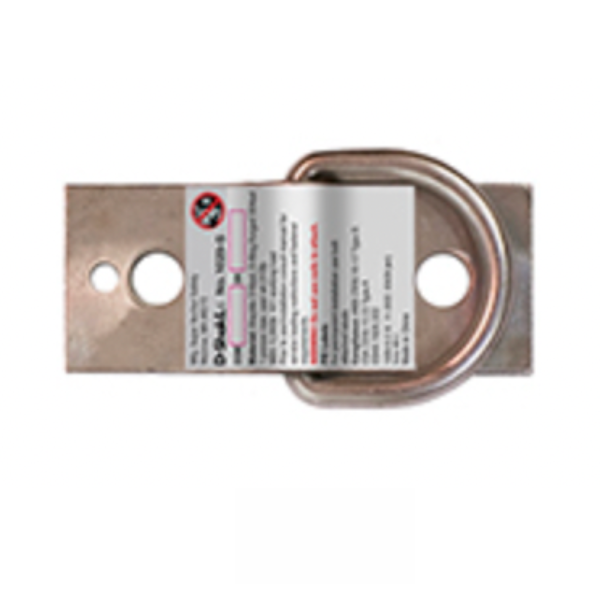

We have had repeated demand for our D-ShakL2 anchor to be installed with lag bolts. Critical testing of lag bolts has determined that you have 2 options for installing using Lag Bolts and our WS Series Screws.
- Lag Bolts: You can utilize 2 ea. 18-8 SST 3/8”x3.0” lag bolts into the center of the truss/rafter over a sheeted roof, wood beam or structure capable of withstanding the intended loads. Holes must be pre-drilled as per the D-ShakL2 addendum. Super Anchor offers two packages of lag screws for the anchor.
- WS Screws: You can use 2 ea. WS 3.5” screw through the 5/16” fastener holes in the D-ShakL2 anchor as seen in Fig. 5A in the D-ShakL2 addendum page. Anchor must be installed over a fully sheeted roof, wood beam or structure capable of withstanding the intended loads. No pre-drilling is necessary when using the WS Screws.
Lag Screw specifications are listed in the D-ShakL2 addendum page. SAS is only specifying that a stainless steel 18-8 3/8”x3.0” or 18-8 ½”x3.0” be used to install the anchor. Pre-drilling the holes is mandatory. Do not substitute with shorter, longer, zinc coated or hot dip galvanized lag screws.
When installed with the above specified fasteners you can use the anchor for 1 person in fall arrest with a 30-degree service zone from each side of the anchor. When used in fall restraint you can apply the load in any direction when no free fall hazards are present.
Each D-ShakL2 Anchor comes with a 2-page comprehensive Instruction/Specification Manual and Lag Bolt/WS-Screw addendum to cover most installation options. See the Engineering tab for comprehensive design/testing/engineering documents. WS Screws and Lag Screw fasteners cannot be reused. New fasteners must be used for each installation.
- Complies with OSHA 1926:502 and 1910:140
- ASTM 123 Hot Dip Galvanized Coating
- 5,000-pound Minimum Strength
- Numerous Mounting Options Available
- Can be used to mount Vertical Lifeline or SRL’s
- Use as a Stand Alone Anchor
- ASTM Hot Dip Galvanized Coating
- Large Inventory in Stock
- Engineered Design for Easy Compliance

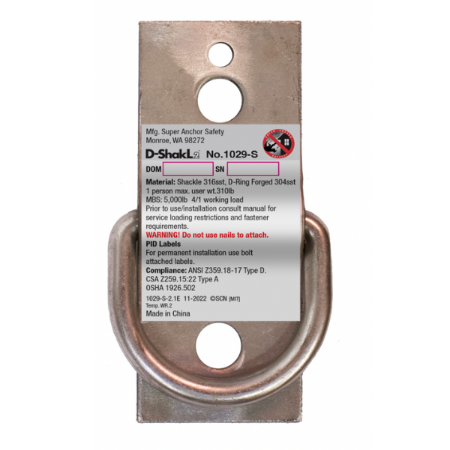

Specifications
- Device: Permanent or Temporary Anchor for Fall Arrest, Work Positioning
- Anchor Install Application: Wood truss, rafter or beam
- Anchor Height: 3/4″
- Fall Protection Rating: Fall Arrest 1 person with 30-Degree working anchor. Fall Restraint 1 person 360-degree
- Anchor Service Radius: 360-degrees in Fall Restraint
- Shackle Hole Size: 2 holes at 9/16″ for 3/8″ & 1/2″ lag bolts. 2 holes at 5/16″ for WS Series Screws
- Lag Bolt Specifications: 18-8 3/8″x3.0″ Stainless Steel. 18-8 1/2″x3.0″ Stainless Steel.
- WS Screw Specification: 1/4″x3.5″ WS Screw with 3/8″ Hex Head grade 5 yellow zinc
- Shackle: 3/16″ x 4-1/2″ x 2.0
- D-Ring: SAS #5003 HDG
- Minimum Breaking: 5,000 pounds
- Minimum Tensile: 5,000 pounds
- Ultimate Strength: 5,000 pounds minimum in any direction of applied load
- 4-to-1 Design Load: 1,250 pounds
- Material Imported: 1,250 pounds
- Finish: ASTM 123 or Hot Dip Galvanized (HDG)
- Maximum User Weight: 310 pounds including tools and equipment
- OSHA Standard: 1926:502 and 1910.140913)
- ANSI Standard/td>: Z359.1-07 and A10.32-2012
