These flashings are compounded specifically for maximum resistance weathering due to ozone and ultraviolet light. A C-12 ASTM additional requirement was added to assure conformance to the most stringent ozone/weathering specifications available

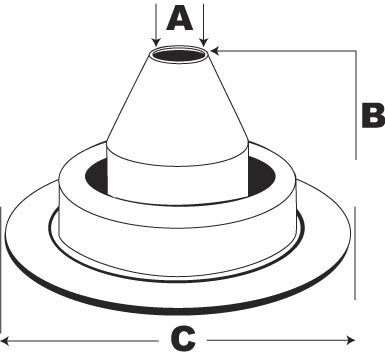

The base of the flashing is designed to form a seal on most panel configurations and roof pitch regardless of pipe location. The pitch canal allows for maximum flexibility, accommodating up to a 60 degree pitch without affecting performance.
Flashing Performance Test
Advanced Ozone Resistance: 70 Hour at 500pphm
High Temperature Resistance:
Intermittent: +135 degrees C (+275F)
Continuous: +100 degrees C (+212F)
Low Temperature Resistance: +50 degrees C (-65F)
Tensil Set Maximum: 10MPa (1450psi)
Compression Set Maximum: 25%
