Architects and roof designers choose copper
roofing for its timeless elegance and durability. The S-5-B (“B” for
“Brass”) allows architects to maintain that theme with all equipment
and accessories that must be mounted to the roof with permanence and
durability consistent with the roof itself.

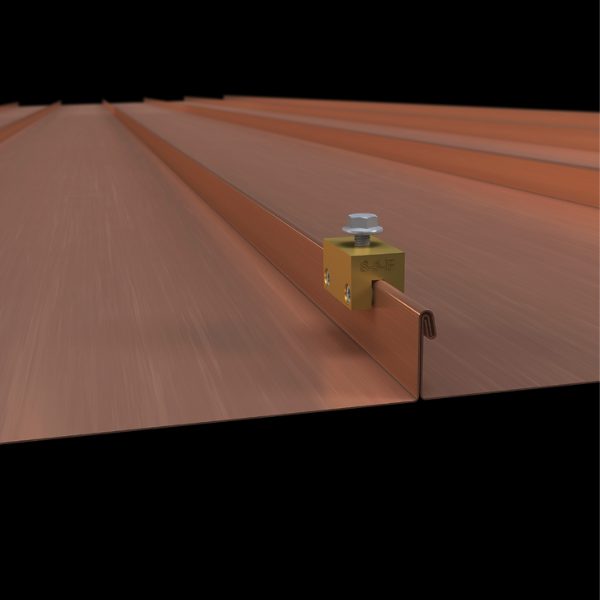

This clamp is specifically designed for double-folded copper standing seam paneling and batten profiles.

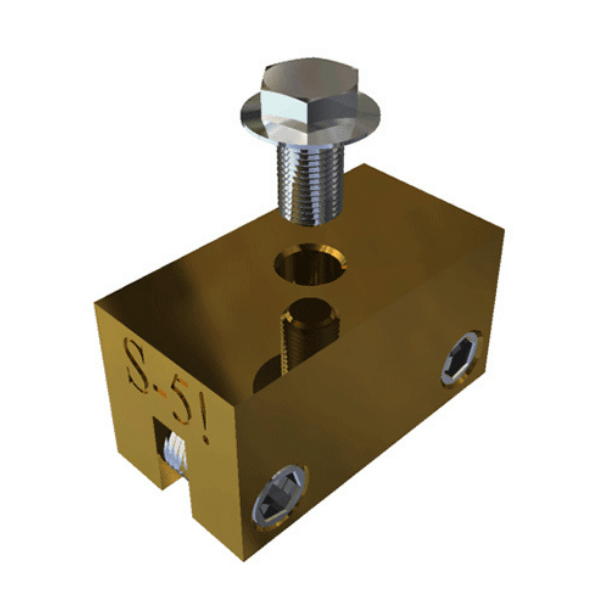

Installation is as simple as placing the clamp on the seam and
tightening the patented round-point setscrews to the specified tension.
Then, affix ancillary items using the bolt provided. Go to
www.S-5.com/tools for information and tools available for properly
attaching and tensioning S-5!™ clamps.
On batten profiles, unfold seam to horizontal orientation at desired
location to install clamp horizontally. This illustration demonstrates
crimping technique, NOT the actual location of clamp.

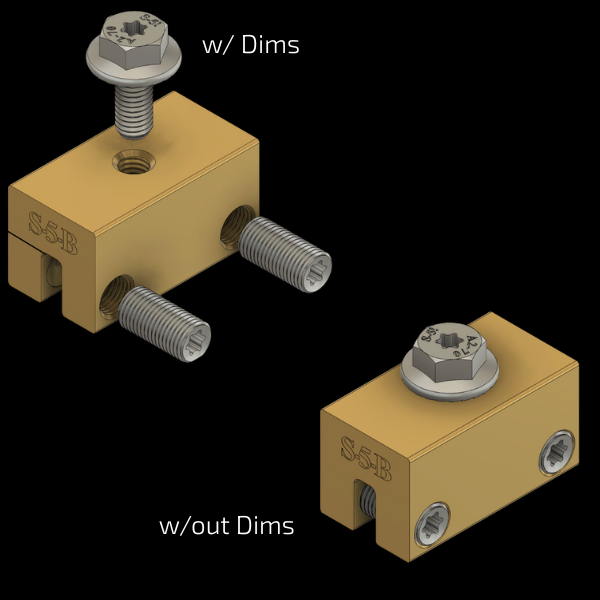

The S-5-B and S-5-B Mini clamps are each
furnished with the hardware shown above. Each box also includes a screw
gun bit tip. All included hardware is stainless steel. Product packages in boxes of 66 and cases of 330.
