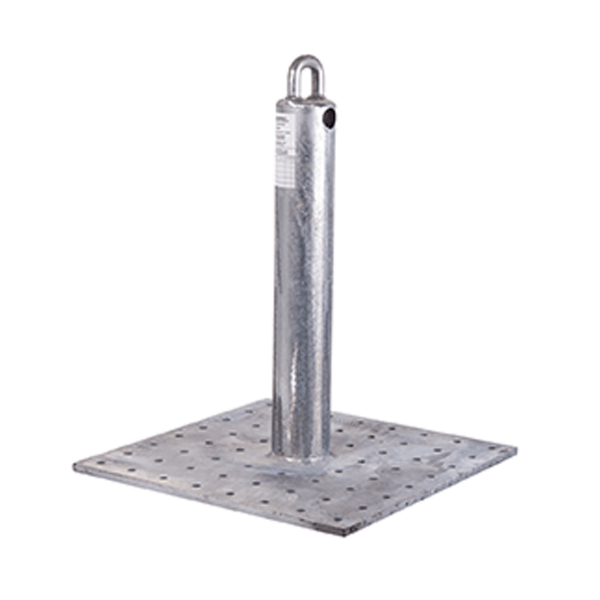

Guardian Fall Protection 00657 CB-18 Roof Anchor for Wood & Steel Decks

Q. What if I don't meet the decking/substrate requirements of a ¾" CDX plywood or 20 ga. metal?
A. There are a variety of different methods. You can use 2x4 bracing for wood applications or you can lay a 4x4 sheet of wood or decking down over the top of the area where anchor points are going to be installed.

Q. Why?
A. Anything less than the above substrates will not hold 5,000 lbs. which is the requirement for attachment areas. By using 2x4 bracing or another sheet of material, screwed securely into the framing members (truss or purlins), you are, in essence, making that section of decking capable of meeting the 5,000 lb. requirement.

Q. What is the proper spacing if I want to run the 4 worker horizontal line system?
A. CB: 12's thru 18's: 20ft. on center SKYHOOKS: 16ft. on center

Q. How many workers does the horizontal cable system hold?
A. 4 in. FALL RESTRAINT per continuous run of cable; 1 in FALL ARREST per continuous run of cable

Q. How do I attach the cable system to the anchors? Do I attach to each one?
A. Terminate the cable on one end by running approx. 2 feet through the anchor and clamping it back to the remaining cable with at least 3 cable clamps. For Skyhooks, run the cable through the large hole, then through the small hole, and back through the large hole. * Run the end of the cable line through each intermediate anchor (for Skyhook, run only through the large diameter hole) * Do not stretch the cable tight! Allow 6 to 8" extra line per 20ft. to allow for slack * When selling the line, also add the 2 feet and the slack * The slack absorbs some of the impact in a fall

Q. Can I install a CB-1-B on a flat roof?
A. No. Because it is a flat anchor with no upright it cannot be installed in any waterproof manner. It is intended for vertical structures.

Q. Can I install a CB-1-W for a permanent application?
A. ONLY if it is installed as recommended and then given some sort of weatherproofing finish. The current unit does not have any weather protection and will rust when exposed.
