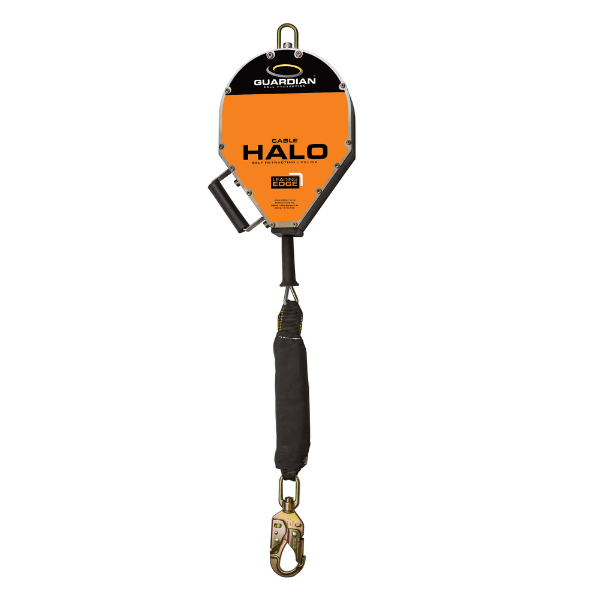

Guardian 10927 50 ft. Heavy Duty Edge Series SRL

The Guardian Fall Protection Halo SRL-LE, formerly the Edge Angel SRL, is designed specifically for Leading Edge (LE) work. It includes an integrated shock absorbing component that helps refocus forces away from the portion of the cable that comes into contact with the edge. While the ideal position for any attachment point is overhead, LE retractables play an important role in the construction industry because, frequently, the only viable attachment point is at foot level. Most SRLs on the marketplace are not certified for such applications, but the Halo SRL-LE is no common SRL, and holds up against even the toughest use.

Features:

• Carabiner included
• Integrated shock absorber
• Durable, non-corrosive components
• Designed specifically for Leading Edge
  (LE) work

Applicable Standards: ANSI Z359.14-14, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910

Worker Capacity Range: LE Use: 130-310 lbs. / Non-LE Use: 130-420 lbs.

Materials: Aluminum & Steel

Performance:

LE USE:
• Max. Arrest Force: 1,800 lbs.
• Max. Arresting Distance: 1,800 lbs.
• Fall Clearance: 17’ - 21’
Non-LE USE:
• Max. Arrest Force: 1,800 lbs.
• Max. Deceleration Distance: 54”
• Fall Clearance: 9’
• Class B SRL

Applications:

Personal Fall Arrest:
Halo Cable SRL-LEs may be used in Personal Fall
Arrest applications to support:
- Maximum1 Personal Fall Arrest System (PFAS)
- Structure must withstand loads applied in the directions permitted by the system of at least 5,000 lbs.
- Maximum permitted free fall is 6’
- SRL may be positioned no more than 6’ below harness dorsal D-ring
- Applicable D-rings: Dorsal

Restraint:
Halo Cable SRL-LEs may be used in Restraint applications. Restraint systems:
- Prevent workers from reaching the leading edge of a fall hazard
- Always account for fully deployed length of SRL. Structure must withstand loads applied
in the directions permitted by the system of at least 1,000 lbs
- No free fall is permitted
- May only be used on surfaces with slopes up to 4/12 (vertical/horizontal)
- Applicable D-rings: Dorsal, Chest, Side, & Shoulder

Guardian Fall Protection customers,

As a result of Guardian’s continued manufacturing success with our Retractable Lifeline Division, Guardian is proud to announce that we will no longer require a mandatory two year recertification on any SRL manufactured after October 1st, 2009.

Consult all local applicable standards for fall protection equipment. As a general guideline, OSHA and ANSI do not require a mandatory recertification frequency. Guardian’s Policy requires that the unit shall be inspected before each use and at least once annually by a competent person. If this unit fails inspection then the SRL shall be sent to an authorized service center for inspection/maintenance.

Ed Marquardt,

Guardian Fall Protection
