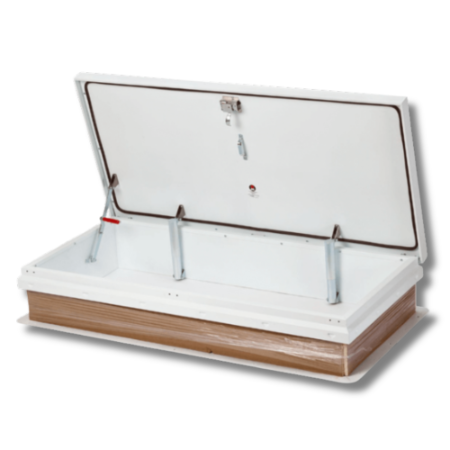

The Diamond Series Roof Hatch is designed for safe and easy roof
access with higher insulation values to reduce building energy costs.
Features
-The
embossed counterflashing design – Diamond Grip™ – quickly secures the
roof membrane and backing rod without tools or sharp edges
-
Springs are counterbalanced to comply with OSHA 1023 fall protection
regulations for single-hand operation of latches from a ladder
- Durable factory-applied powder coat finish and corrosion-resistant hardware provide maximum protection
Product Details
Curb:
Single wall curb and counterflashing with Diamond Grip to secure roof
membrane without tools. 14 gauge galvannealed steel, white textured
powder coat paint.
Cover:
Formed and welded with liner, tested to support a live load of 40psf.
14 gauge with 22 gauge liner galvannealed steel, white textured powder
coat paint.
Gasket: Continuous, weatherproof EPDM sponge rubber adhesive-backed seal.
Insulation: 1” polyisocyanurate in curb and cover with thermal resistance R-6.
Spring: Counterbalanced compression springs contained in clear zinc-plated steel cylinders.
Latch: Clear zinc-plated steel slam latch with inside and outside handles and padlock hasps. Tested to 50psf wind uplift.
Hold Open Arm: Clear zinc-plated automatic locking hold open arm with red vinyl grip for one handed door operation.
Hinge: Heavy duty clear zinc-plated steel pintle hinge.
