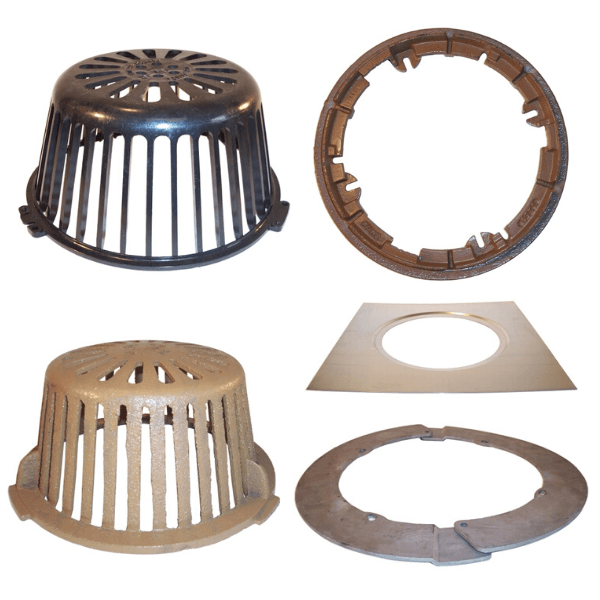

Smith 1010 Dome + Accessories

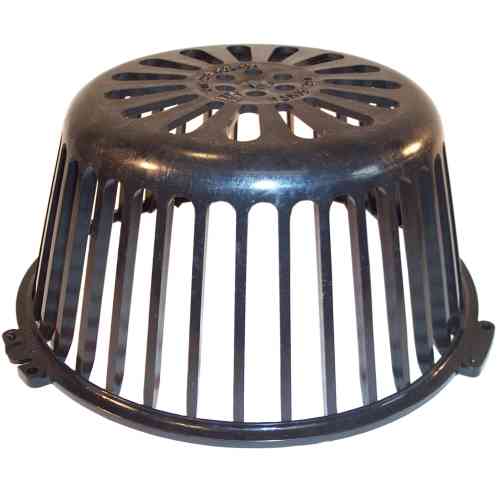

Poly Dome:

Outside diameter 11-1/4"

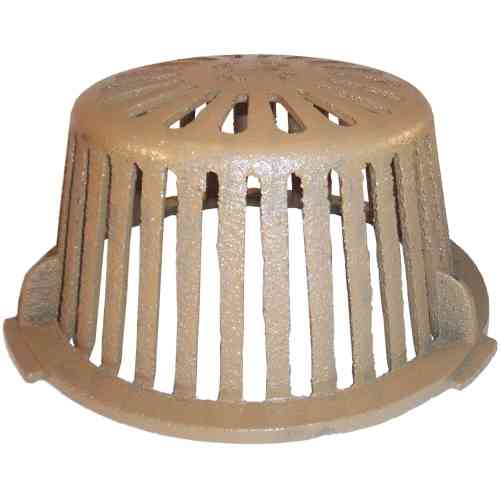

Cast Iron:

Outside diameter 11"

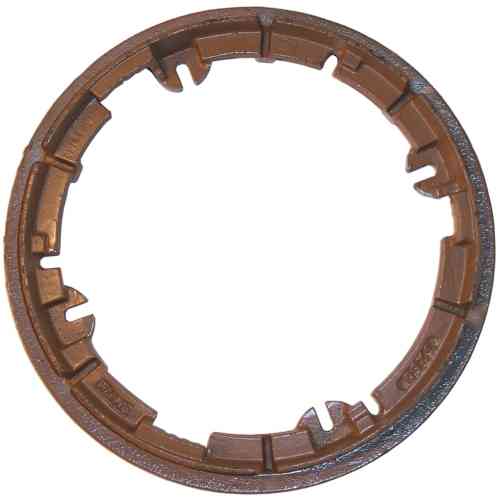

Drain Ring:

Outside diameter 14"

Underdeck Clamp:

The Smith underdeck clamp should be specified on all but poured-in-place installations. Roof drains must be firmly secured to the roof with an underdeck clamp, otherwise, due to snow loads, rain loads and regular expansion and contraction, the drain will work in and out of the roofing, causing roofing membranes to flex and fail. Brittle tar will crack and leaks will occur.

Sump Receiver:

The Smith Sump Receiver should be specified on all but poured-in-place roof drain installations. The sump receiver is a square metal plate with recessed center opening to accept the drain body flange. This eliminates the puddle of water surrounding many roof drain installations due to the flange resting on top of a circular hole cut in the roof.

A poor installation occurs when a circular hole has been cut in the roof that ends up off center of the leader pipe. The result is usually a crooked or off-set leader. The Smith square sump receiver allows the hole to be cut oversize and square permitting the drain to be shifted and centered over the pipe. The probable result of not using a sump receiver is a drain body that is improperly seated on the deck, causing roofing felts and other roofing materials to create a dam-like effect around the drain, resulting in a puddle in the vicinity of the drain. This problem can always be eliminated with a sump receiver.
