Price: $63.45
Item #POR-29235
Write a review!
Quantity:
Description

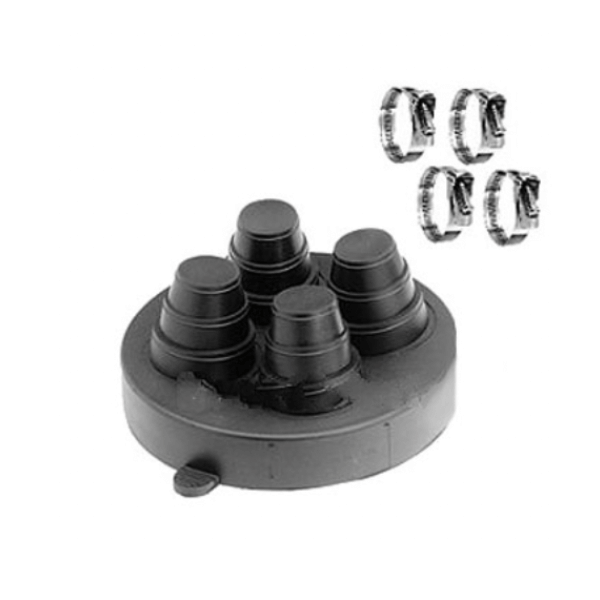

Each boot can handle up to four pipes. Each Cap Hhndles 4 pipes, 1 to 2 inch OD. Four stainless steel adjustable clamps for each cap are provided to secure the cap around pipe penetrations. The flexible EPDM cap eliminates roof leaks because penetrations can expand, contract, and vibrate independently of the roofing system. Used together with Alumi-Flash or Plasti-Flash Base. The EPDM cap is mechanically sealed to a Alumi-Flash or Plasti-Flash base (not supplied) by a double "Weather-Tite Pressure Seal", which consists of two beads formed into the collar of the base that mate with double grooves molded into the inside of the cap. The Portals Plus Alumi-Flash provides a permanent, watertight, and maintenance-free means for penetrating roofs that is simple and easy to install. Optional adapter Rings can modify these penetrations.
- All Caps shall include Portals Plus'stainless steel Snaplock Clamps.
- (4) Penetrations from 1 inch to 2 inches
Reviews (0) • Write a review!
This product has no reviews yet. Write a review!
Portals Plus 36102, Double Pipe Portal Cover with 412 &...
Double Cover & Caps w/ C-412 & C-481 Black Caps
Price: $461.70
Availability: In Stock
Usually ships within 1-2 Business Days
Furnish and install the Portals Plus Double Pipe Portal at all points where up to four pipes .375" - 1" in diameter and four pipes 1" - 2" in diameter penetrate the roof. The Pipe Portal shall include an 18 gauge galvanized roof curb model RC-___A with integral base plate, continuously welded cor-ner seams, factory-installed wood nailer, and 1.5" 3lb. rigid fiberglass insulation. The Pipe Portal shall be furnished with a laminated, acrylic coated, ABS plastic curb cover with prepunched holes...
Portals Plus 32025, Curb Cover w/412 Cap, Tan
Small Cover & Cap w/ C-412 tan Cap
Price: $135.95
Availability: In Stock
Usually ships within 1-2 Business Days
Pipe Portal with C-412 Cap Furnish and install the Portals Plus Pipe Portal System at all points where up to four pipes 1" - 2" in diameter penetrate the roof. The Pipe Portal shall include an 18 gauge galvanized roof curb model RC-___A with integral base plate, continuously welded corner seams, factory-installed wood nailer, and 1.5" 3lb. rigid fiberglass insulation. The Pipe Portal shall be furnished with a laminated, acrylic coated, ABS plastic curb cover with pre-punched holes and molded...
Portals Plus 22035, Alumi-Flash Standard Base w/412 Black...
Standard Base w/412 Black Base
Price: $124.55
Availability: In Stock
Usually ships within 1-2 Business Days
Features: Furnish and install the Portals Plus StandardAlumi-Flash at all points where up to four pipes 1" - 2" in diameter penetrate the roof. The Standard Alumi-Flash shall include a .060" spun aluminum base unit with a height of 4" and a base diameter of 14". The 8" collared opening shall have two beaded sealing rings roll-formed into the top edge. An EPDM(Ethylene Propylene Diene Monomer) compression molded cap model C-412 shall be utilized. All Caps shall include Portals Plus'stainless...
Portals Plus 24035, Alumi-Flash Extra Tall Base w/412...
Extra Tall Base w/412 Black Cap
Price: $208.45
Availability: In Stock
Usually ships within 1-2 Business Days
Furnish and install the Portals Plus Extra Tall Alumi-Flash at all points where up to four pipes .375" - 1" in diameter penetrate the roof.The Extra Tall Alumi-Flash shall include a .060 spun aluminum base unit with a height of 13" and a base diameter of 14". The 8" collared opening shall have two beaded sealing rings roll-formed into the top edge. An EPDM (Ethylene Propylene Diene Monomer)compression molded cap model C-481 shall be utilized. All Caps shall include PortalsPlus' stainless steel...
