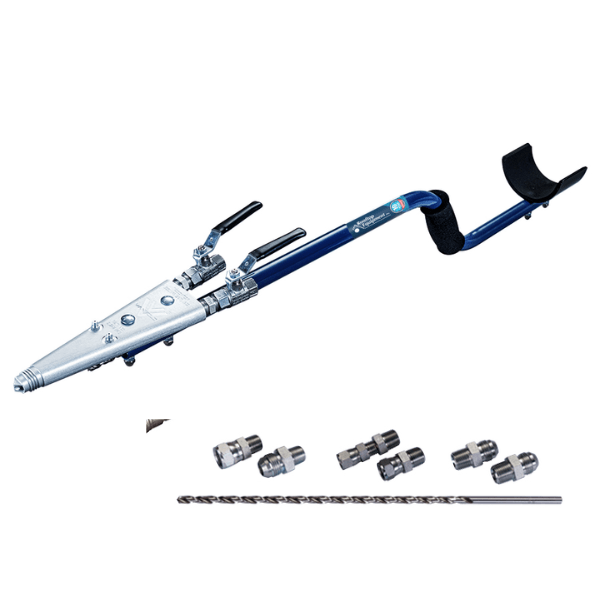

Rooftop Equipment Inc. - Premium V-Manifold 2-Part Adhesive Applicator

The Vee Manifold is the better way to apply 2-part adhesives!

The patented Vee Manifold is constructed with simple straight flow paths that allow a free flowing stream of liquid components for 2 part adhesive application. Straight flow paths allow fro less downtime. No need to disconnect hoses to restore flow interruptions. Quickly remove clogs with provided 12 in. drill bit

Straight Flow Path:

• Reduces Clogging
• Allows for Easy Clean Out

Features:

• 60% lighter than other manifolds
• Anodized Aluminum body and threads
• Two Zerk grease fittings
• Production back up and running in seconds not hours
• Eliminates daily start up and shut down producers
• 12" x 1/4" Drill Bit provided for cleaning
• Comfort fit handle and cuff
• Economical
• Saves down time
• Works with the OMG PaceCart & ADCO Millennium Cyclone
• Included fittings:
  • For ADCO Millennium Cyclone : one3/8" NPTF Male x 1/2" JIC Female Swivel (6505-06-08) , and one 5/8" JIC Male X 3/8" NPTF Male Pipe (2404-10-06)
  • For Olympic OMG Pace Cart : two1/2" JIC Male x 3/8" NPTF Male Pipe (2404-08-06)

Benefits:

• Reliable Flow
• Simple design
• Strong durable construction
• Comfortable foam cuff allows for ease to use
• Lighter weight reduces operator fatigue

With what machines can I use V-Manifold Applicators?

InvertaPress4000, Cyclone, Pace Cart, and Patriot Jr.

What is a Yoke Handle?

The V-Manifold Adhesive Applicator has two ball-valves. The Yoke Handle connects the two valves, allowing you to start and stop both valves with one motion. Both the Standard and Premium V-Manifold Adhesive Applicators can be purchased with a Yoke Handle. (Yoke Handles are not sold separately.)

What’s the difference between the Standard V-Manifold Adhesive Applicator and the Premium V-Manifold Adhesive Applicator?

The Standard V-Manifold Adhesive Applicator is molded urethane with steel flow paths and no grease fittings. The Premium V-Manifold Adhesive Applicator has a machined, all-aluminum body and Zerk grease fittings for each flow path. Both models have straight flow paths that dramatically reduce clogs, compared to older technology.

How do I clean out the Standard V-Manifold Adhesive Applicator?

Leave the mixing tip on the applicator until the next use. Prior to starting work again, remove the old mixing tip, open the ball-valves, and run the included drill bit into the distribution openings. Be sure to clean the drill bit after the first side to avoid contaminating the second one.
