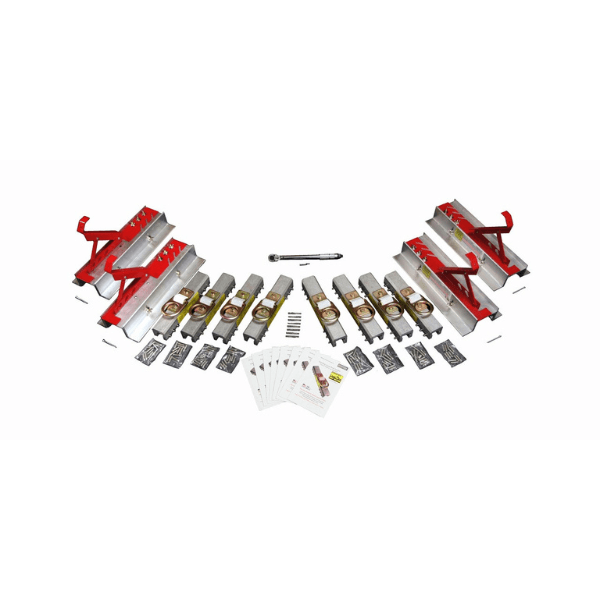

Roof Jack Pro Pack
This kit was crafted specifically with roofing contractors and solar installers in mind, combining our popular 8-piece Contractor Pack and Torque Wrench Kits with 4 SSRA2 Adjustable Roof Jack Adapters to facilitate walkboard attachment on standing seam roofs!
The Standing Seam Roof Anchor (SSRA1) is an innovative product designed to enable homeowners, building owners, and contractors to work safely on standing seam roofs without the need for panel penetration. Engineered to revolutionize fall protection anchorage attachment on Standing Seam Roofs! The patented, non-penetrating design of this life-saving device is unmatched by any other product on the market. It comprises a sturdy 6061-T6 aluminum body with 12 stainless steel set screws and Nylon Tipped stainless steel set screws. The standard assembly also includes a 5,000 lbs certified D-ring for single-man attachment. It comes fully equipped for single-seam, single-user anchorage. This kit allows for the deployment of standing seam metal roof brackets using the provided adjustable roof jacks.
The SSRA1 underwent Ultimate Failure testing at an independent materials testing facility certified by ISO 17025/ANSI Z359.18. The results surpassed our expectations and outperformed our competitors. While the maximum testing protocol for OSHA and ANSI is 5,000 lbs, the SSRA1 withstood a load of 14,500 lbs before the Grade 8 top bolts sheared, leaving the aluminum anchor body undamaged and unbent. This remarkable strength is attributed to the patented structural design of the anchor body, placing the SSRA1 in a league of its own within the industry!
22 Gauge Panels - Use either the included Cupped Tip or optional Nylon Tipped Set Screws.
24 Gauge Panels - Use Nylon Tipped Set Screws only.
User must use an inline shock absorber or shock pack when using the SSRA1.
Advantages of the SSRA1 for homeowners, building owners, and contractors:
- Lightweight at only 4.5 lbs, making it the world's lightest OSHA/ANSI 5,000 lbs certified anchor.
- Quick installation in minutes with basic hand tools for both temporary and permanent attachment.
- Patented universal fit design compatible with over 500 Standing Seam Panel Profiles without requiring reassembly.
- Constructed with non-corrosive aluminum and stainless steel components, ANSI ASTM B-117 Salt Spray tested for durability.
- Option for powder coating to match roof colors for permanent installations.
- Manufactured in the USA with a Lifetime Life Saving Warranty.
- Low profile attachment minimizes tripping hazards and is less obtrusive for permanent installations.
- OSHA/ANSI tested to 5,000 lbs in ALL directions of pull, allowing access to both sides of the roof without repositioning the anchor.
- Certified component system for mounting various devices to a standing seam roof, including roof jacks, walk boards, SRLs, horizontal lifelines, and ladder anchoring.
The SSRA2 - Adjustable Roof Jack Adapter, part of the Standing Seam Roof Anchor system, enables mounting 2"x10" walkboards to over 500 standing seam roof panels. The SSRA2 adapter plate mounts atop a Standing Seam Roof Anchor(SSRA1) with the D-ring removed, constructed of solid 6061-T6 aluminum with stainless steel hardware. Adjustable height stabilizer legs ensure steady mounting on numerous seam types.
Brackets should be placed every 8' with one worker permitted per 8' of walk board. The jack angle adjusts to accommodate roofs up to a 12/12 pitch.
