    Description

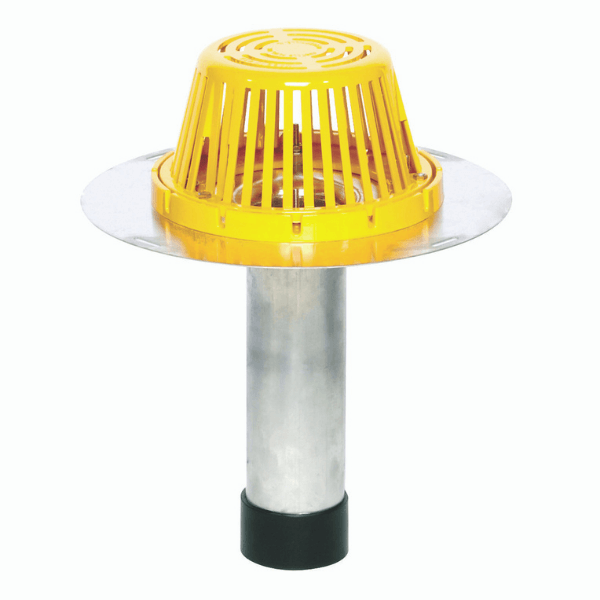

    The drain is completely installed on the rooftop with NO special tools and all hardware is stainless steel.The unit is available with either plastic or cast aluminum dome strainer and the outlet tube gives minimum downsizing to the existing drain. The Portals Plus ReRoof Drain makes a perfect roofing termination point and offers an excellent connection to the plumbing below.

    Features:

    • Drain shall consist of a molded ultraviolet stabi-lized polyethylene or cast aluminum dome strainer
    • A cast aluminum epoxy coated gravel guard and clamping ring
    • 15" or 18" O.D. spun Aluminum drain flange
    • The outlet pipe shall have a pre-compressed modified asphalt impregnated expanding foam, sealing tape, having a temperature range of -40 F to +185 F and 150% minimum elongation.
    • Available in 2", 3", 4", 5" and 6"

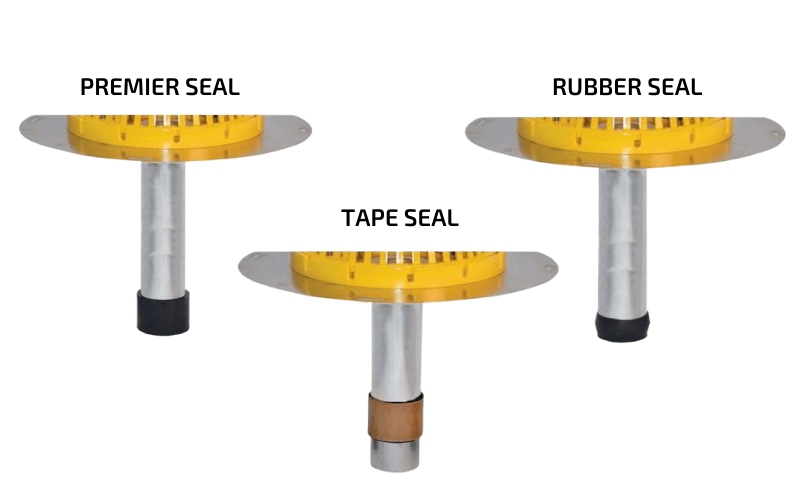

    Seal Information

    The Premier Seal:

    The Premier Seal for Aluminum ReRoof Drains! Portals Plus has developed a unique Mechanically Expandable Rubber Seal, “The Premier Seal”. The Drain is designed to replace existing drains in retrofit applications. All installation is conducted on the roof surface. The seal is activated by tightening the internal screws with the Premier Screwdriver. The Seal utilizes PVC flanges for increased strength and stainless steel screws to compress the EPDM rubber gasket. The compression of the seal expands it and makes contact into the existing piping of the pre-existing drain, therefore, preventing vertical movement and stopping water damage into the building. The Premier Seal exceeds SPRI and ANSI Retrofit Drains requirements.

    Tape Seal:

    A special precompressed modified asphalt impregnated expanding foam sealing tape automatically makes a permanent elastic watertight seal to the existing drain, eliminating water backup.

    Rubber Seal:

    The seal is instantaneous as the ReRoof Drain is inserted into the existing pipe! Years of research and testing have resulted in this unique seal that actually seals tighter as water pressure increases from backups. Hard to believe, but testing done by the engineering firm that designs the seals for America’s deep-diving nuclear submarines proves that it with-stands over a 50-feet pressure head of water, both with slow increases in pressure and sudden surges from 0 to 50-feet. The seal was found to resist leaking better than cast iron pipe! During the testing, the cast iron pipe developed porosity leakage from the 50-feet pressure head, but the seal held tight.


    Specifications

    66091 - TAPE SEAL - ALUMINUM REROOF W/ PLASTIC DOME - Will fit 2"

    66691 - RUBBER SEAL - ALUMINUM REROOF W/ PLASTIC DOME - Will fit 2"
