Price: $90.00
Item #OATEY-88043
Write a review!
Quantity:
Description

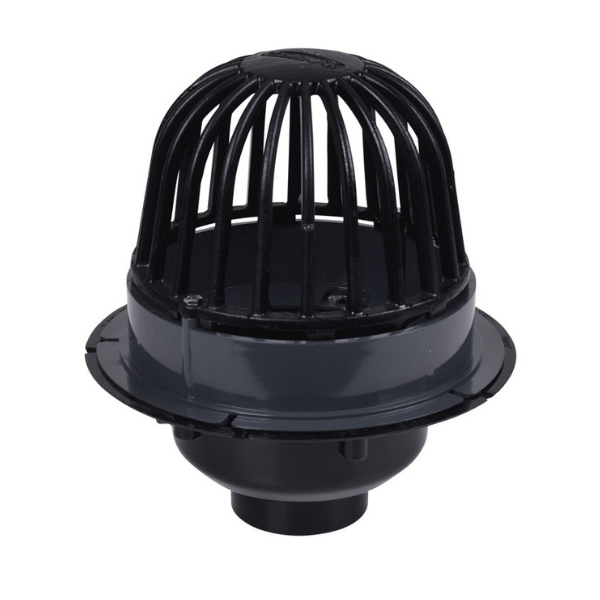

Oatey® ABS Roof Drains offer superior rainwater drainage while resisting debris and material buildup. Available in a variety of sizes, these roof drains feature a black cast iron or UV-stable ABS dome with a free-flow area that provides more than 200 square inches of protection. Five anchor positions on the drain base ensure secure installation, and the gravel guard collar easily clamps to the drain base with a twist-and-lock feature. Oatey products have earned the trust of plumbing professionals for over 100 years.
- 3 in. or 4 in. ABS roof drain
- Designed to drain rainwater from a flat roof
- Contoured design allows free flow and resists material buildup
- Dome free-flow area provides more than 200 square inches of protection
- 2 in. dam collar for supplementary drain system
- Twist-and-lock feature for easy and secure clamping of the gravel guard collar
- 3 in. pipe fit x 4 in. hub fit
- Five anchor positions on base to ensure secure install
- Durable ABS base with cast iron dome
FAQs
Q: Does the drain funnel come with the screws?
A: Yes.
Q: Can waterproofing materials be used with all Oatey commercial drains?
A: No. Waterproofing materials can only be applied in series with our flanged drain assemblies. Please visit our website to select the right drain for your project.
Q: How is a Roof Drain Receiver Pan secured during installation?
A: Oatey offers a #47700 Underdeck Clamp Kit that is recommended for every roof drain installation. This clamp is placed below the roof and attached to the drain body with 4 pieces of threaded rod, and 4 nuts. Once installed the clamp will secure the drain body in place so that the waterproofing seal is less likely to be compromised.
Q: How should a Roof Drain be installed when foam insulation is installed on the roof?
A: The roof drain should always be set onto the base of the roof structure unless otherwise specified by a roofing materials manufacture or project engineer. After the drain is secured into place using the Underdeck Clamp Kit, the roof would then be flashed (waterproofed). The insulation, other roofing materials and finishes are set into place according to the roofing materials manufacturer or the project engineer.
Additional Information
- Strainer Finish: Cast Iron Grate
- Base Size/Diameter: 2 in.
- Pipe Size: 3 in. Pipe fit x 4 in. Hub fit
- Color: Cast Iron Grate
- Weight: 10.05 lb.
