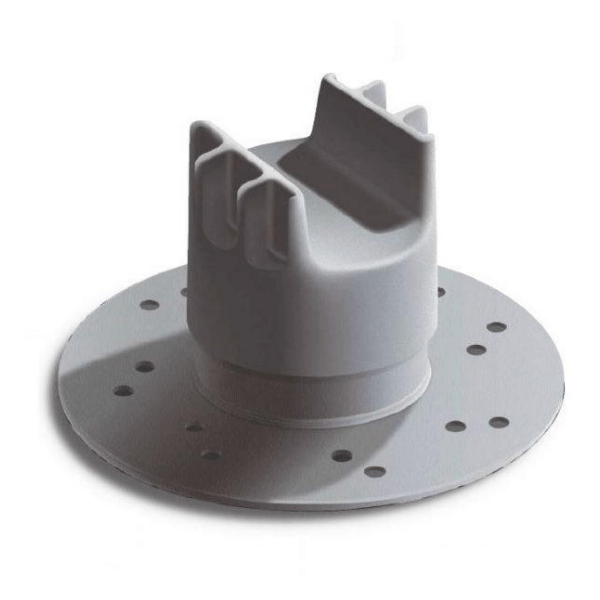

Strut KnuckleHeads are engineered to accommodate steel or aluminum channel which can be configured to support all types of HVAC equipment such as air conditioning units and multiple conduit lines, or for installing solar arrays at proper angles.
Strut Supports are designed for a wide variety of applications including air conditioning units, solar panels, oversized pipes and other HVAC equipment that is to be installed on commercial roofs. Strut Supports are designed to accommodate standard metal struts which can provide a framework for keeping equipment elevated off the roof’s surface. Each KnuckleHead can support up to 600 lbs. Units can be spaced to evenly distribute the load of the heaviest equipment. KnuckleHead extensions are available for raising roof-mounted pipes and equipment to higher elevations up to 18”. Strut supports are lightweight, so they add little to total roof load, preventing low points and depressions that invite ponding water and ice build-up.
- Designed to support metal struts for installation of HVAC equipment and pipelines
- Each KnuckleHead is able to support up to 600 lbs.
- Molded from GREEN LINK glass-reinforced nylon resin, which has metal-like properties
- Matte-finish nylon allows bonding with adhesive
- The Universal Base can be loose laid or attached using adhesive and/or screws to meet seismic and wind uplift conditions
- Strong, tough, weatherproof, UV stable, impervious to freeze-thaw cycles
- Height is adjustable by rotating head — total height ranges from 3.2” – 5” depending on strut size
- Height extensions up to 18” are available.
KnuckleHead installations have been performing in the field for more than 20 years with continual exposure to high temperatures, freeze-thaw cycles, UV exposure, and stress, and they have shown no signs of deterioration.
KnuckleHeads prevent damage to the membrane caused by ponding water, wind, ice, flying debris, or seismic events and protect the integrity of roof-mounted structures and equipment. GREEN LINK can custom-cut metal struts, or design and manufacture special support elements such as a custom-molded base pad for a corrugated metal roof.
They are engineered with a Universal Base that can accommodate a range of head designs depending on the particular support application needed.
The Universal Base is designed with four holes at its center for accepting mechanical fasteners. Before penetrating the roof membrane, the contractor should consult with the manufacturer to ensure that the warranty is not voided.
KnuckleHeads can be loose-laid or attached directly to the roof either mechanically and/or with GREEN LINK Adhesive/Sealant.
GREEN LINK Adhesive/Sealant can be used by itself to form a bond of up to 275 psi shear strength. This prevents movement of the supports caused by equipment vibration, high winds, or seismic events.
GREEN LINK Adhesive/Sealant is environmentally safe and presents no toxic risk to contractors or building occupants. It is solvent-free, isocyanate-free, non-flammable, and odorless.
