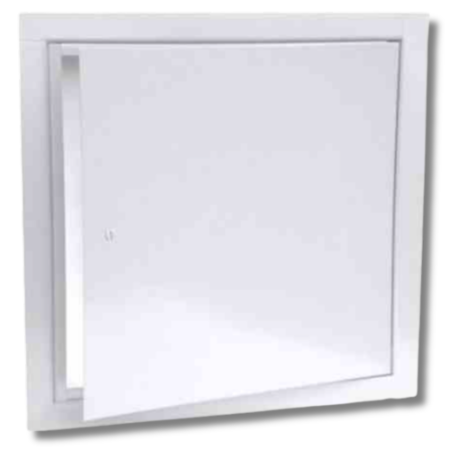

The TM is an all-purpose panel for installation in an opening in wallboard, plaster, masonry, brick or panelling. The 1" flange covers the cut opening. Provide access to a wide variety of wall or ceiling installations including plumbing, HVAC and communcations.
Frame:16 gauge steel with a 1" wall flange.
Door:16 gauge steel access door mounted with a 90° continuous, concealed hinge.
Finish: White powder coat paint. NEW
Lock: Flush screwdriver-operated steel cam (C).
Sizes: Minimum 6” x 6”, maximum 48” x 48”.
Custom Sizes: Available in1/4” Increments Only—For Example 16-1/4”, 16-1/2” or 16-3/4
