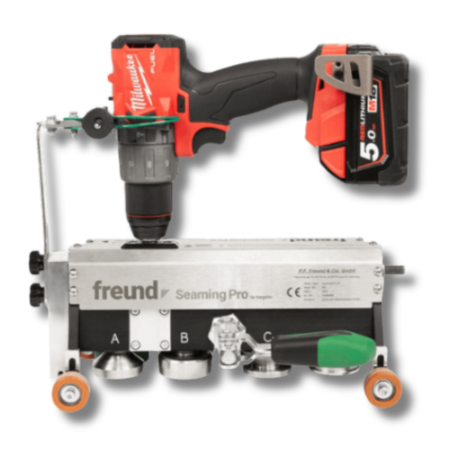

Freund #93000000 Seaming Pro

• Creation of double standing seams - in just one work step.
• Creation of single standing seams.
• Cutting off the old seam.

Scope of Delivery

• Seaming Pro® seaming machine equipped with stainless steel forming rolls.
• Holder for cordless screwdriver, already mounted and applicable without further tools.
• Cutting wheels.
• Ball-bearing, height-adjustable rubber roller for seaming heights of 25mm, 32mm and 38mm (1.0"-1.5")
• Alien key in 3,4,5,6 mm
• Robust transport box is impact resistant and waterproof (IP67)
• User manual

Features:

• Complete: 1 unit for 3 applications - double standing seam, single standing seam and cutting off the old seam.
• Fast: Creates double standing seams in just one work step - up to 8 to 12 meters (26-39 ft.) per minute.
• Wireless: Simply attach your standard cordless screwdriver to one of the two holders (roof or facade).
• Light and compact: The device weighs 6.5kg (14 lbs.) without cordless screwdriver
• Problem-solving: Can be unlatched and latched into the seam.
• Flexible: Quick modification to the different functions.
• Time-saving: No need to pre-seam or seam with square seam folder or twin square seam folder.
• Steplessly adjustable in height: The track wheels are adjustable from 25mm to 38mm (1"-1.5") seamlessly.
• Flat: Fits between facade scaffolding.
• Universal: You can process copper, zinc, and aluminum up to 0.7mm (21 gauge), galvanized or colored steel up to 0.6mm (22 gauge), as well as stainless steel up to 0.5mm (24 gauge).
• Extra smooth running: Thanks to the ball bearings in the track wheels, the operation is extra smooth.
• Protective: Due to high-quality rubber wheels, the sheet metal roof is particularly protected during processing.
• Simple: The cordless screwdriver can be attached and fixed without tools.
• Impact resistant, dust and waterproof (IP67): With the new outdoor case, your Seaming Pro® is especially protected against external effects.
• Safe and stabilizing: The front roller controls the existing profiling and holds the Seaming Pro® in place when closing the fold.

Why Seaming Pro?

More profit for you and your customers. Easy to use. Premium results.

What is the function of double seaming?

A double seam creates a hermetic seal by interlocking the edges (flanges) both of the cover (lid or end) and body of the can. The body hook, which is also commonly known as the can hook, is the flange of the can body that is curled downward in the formation of the double seam.

What are the different types of standing seam metal roofs?

Mechanically seamed panels are similar to snap-lock panels, however the clips securing them in place must be crimped together with a machine or by hand. There are four basic standing seam metal roof panel styles: double lock seam, symmetrical seam, one-piece snap-lock interlock and two-piece snap-lock interlock.
