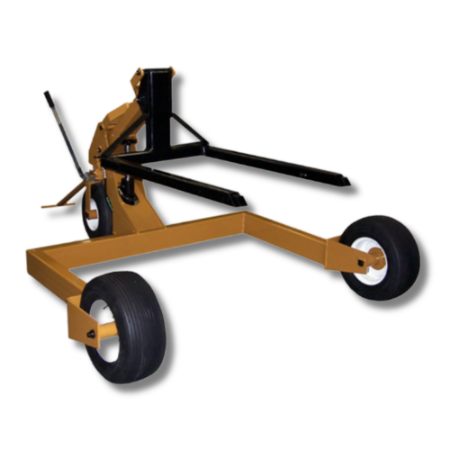

The Tuff Jack- Pallet Mover
The ASE Tuff-Jack material mover allows the operator to move an entire pallet of material. When used with a hoist the materials can be loaded and positioned around the roof in record time.
Forks:
The Heavy-Duty forks are capable of lifting material up to 33" in the air, perfect for loading 4 wheel trailers or other carrying machines with the material. The forks also contain extensions allowing for 8 ft skids to be lifted with ease.
Handle and Turning:
The single great swivel wheel allows for a turning radius of only 38". this allows the Tuff-Jack to virtually turn by itself, making it very maneuverable in tight spaces.
The handle also acts as a tow hitch for transporting behind the SS16 Cheetah, Hydraulic Workhorse, or other Rooftop Equipment.
Handpump and Hydraulic Tank
A unique integrated hydraulic tank pro-vides a stronger pump base and less chance of the tank being damaged while the machine is in transport.
Specifications:
Lifting Capacity: 2500 lbs - 4ft Long Pallets
400 lbs - 8ft Long Pallets.
Throat Opening: 55”
Fork Spacing: 26”
Wheels: Front - 20 x 10 Rear - 18 x 8.50
Dimensions: 94” x 80” x 36”
Weight: 650 lbs.
