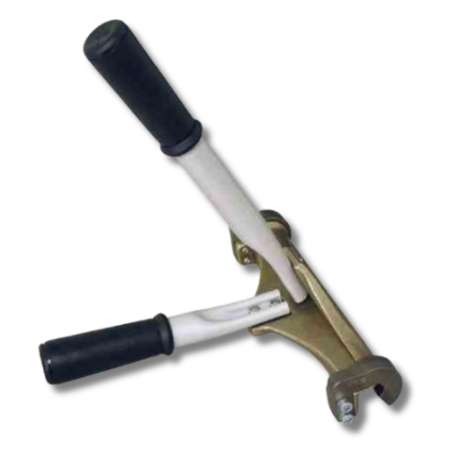

ESE Machines, #001C First Stage Hand Seamer

ESE Curved Hardy Tool for concave Single and Double lock standing seams FEATURES Single and Double locking seamsSimple and original methodErgonomic handle with flat surfaces fro firm grip and controlHeight of sides 1 in. x 1-3/8 in6 in. WideMade in USA

For Single Locking the 3/4" Wide Standing Seam FEATURESSingle lock hand seamerForms the 90 degree bendFor hard to reach placesTo start or finish (or an entire roof)Lightweight and easy to useWill not scratch or peel paintThis tool can be used on profiles that measure 3/4" across the topFor a double lock, pair with ESE 099-750 Finish Hand SeamerMade in the USAMaximum gauges : steel (24 ga.), aluminum (0.032), copper (20 oz.) Please Note: Seams approximately 5.75" at a time. The pivot is 10" but...

Use after first seaming with a Single Lock (First Stage) Hand SeamerDetails Double lock hand seamerForms the second stage 180 degree bendFor hard to reach placesUse to start, finish or seam the entire roofUnique leverage designLightweight and easy to useWill not scratch or peel paintFor profiles that measure 13/16″ across the topNote: before using this tool the panel must be seamed with a first stage (single lock) seamer Maximum Bending Gauges Steel : 22 gaAluminum : 0.040″Copper : 20 oz...

For Double Locking a 1/2" Wide Standing Seam Double lock hand seamerForms the 180° bendFor hard to reach placesTo start or finish (or an entire roof)Lightweight and easy to useWill not scratch or peel paintNote: before using this tool, prepare the seam with the 001 or 001C to a single lock bendMade in the USAPlease Note: Seams approximately 6" at a time. The pivot is 11" but there are reliefs on each side to allow a smooth transition between each crimpBefore Using This Tool, Prepare the Seam...
