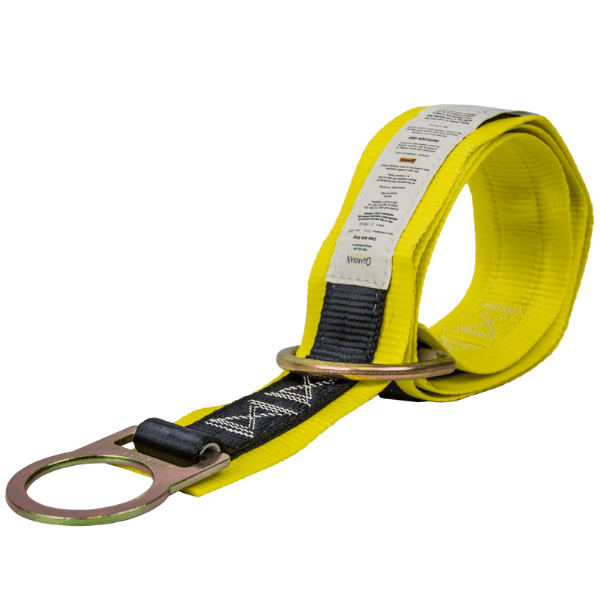

The Guardian Fall Protection "Premium Cross Arm Straps" are twice as durable with dual enforced webbing and heavy duty stitching. The heavy duty wear pad protects the structural webbing against abrasion and snags. Each strap features a large D-ring and standard size D-ring for pass-thru, which increases the versatility of length adjustment. To shorten the anchorage connector, simply wrap the webbing around the anchorage and pass through the large D-ring.
Features:
- Twice as durable with dual enforced webbing & heavy duty stitching
- The heavy duty wear pad protects the structural webbing against abrasion & snags
- Large D-ring & standard size D-ring for pass-thru
- Light weight and durable
- Easy to install
- Loops and fasteners around steel support beam or compatible anchors
- Convenient loop eliminates need for fasteners/penetration
- Surfacetech webbing makes webbing resistant to dirt, mold , and other contaminants
Specs:
STANDARDS:
OSHA 1926 Subpart M & 1910
ANSI Z359.18 -17 & A10.32 -12
Type A Anchorage Connector
MATERIALS:
Nylon, Galvanized Steel, Polyester
Stainless Steel
WORKER CAPACITY:
130 - 420 lbs.
PERFORMANCE:
• Maximum Users: 1
• 5,000 lb. MBS (Minimum Breaking Strength)
NOTES:
• Minimum service temperature: -30°F
• For use with Horizontal Lifelines
Applicable Standards: ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Worker Capacity Range: 130-420 lbs.
Material: Polyester and galvanized steel
Min. Breaking Strength: 5,000 lbs.
Applications:
Personal Fall Arrest:
Premium Cross Arm Straps may be used in Personal Fall Arrest applications to support:
- Maximum 1 Personal Fall Arrest System (PFAS). Structure must withstand loads applied in the direction permitted by the system of at least 5,000 lbs.
- Maximum allowable free fall is 6’, unless used in combination with equipment explicitly certified for extended free fall of up to 12’.
- Applicable D-rings: Dorsal.
Restraint:
Premium Cross Arm Straps may be used in Restraint applications. Restraint systems:
- Prevent workers from reaching the leading edge of a fall hazard.
- Always account for fully deployed length of SRL.
- Structure must withstand loads applied in the directions permitted by the system of at least 1,000 lbs.
- No free fall is permitted.
- May only be used on surfaces with slopes up to 4/12 (vertical/horizontal).
- Applicable D-rings: Dorsal, Chest, Side, & Shoulder.
