Description

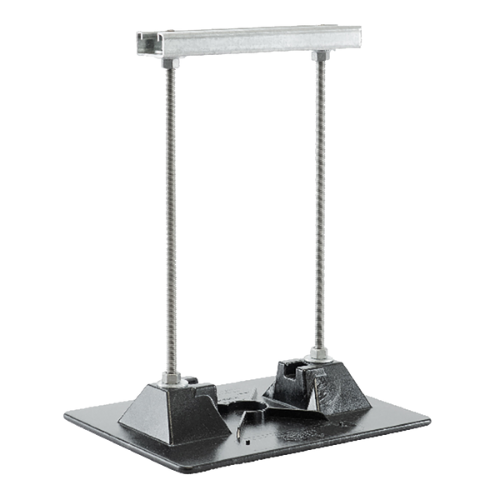

A pipe support with “strut” used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of polycarbonate resin, and all other metal parts are made of hot-dip galvanized or stainless steel. Pipestand will accommodate up to 2.5″ pipe (inside diameter) or up to 3″ (outside diameter) pipes.
DETAILS:
- adjustable height from 2 1/2" to 12"
- supports up to a 3" pipe
- maximum load of 223 pounds
APPLICATION:
- use as a pipe support for all single conduit, refrigeration & natural gas piping applications on single-ply or built-up roofs
- can be used in applications where thermal expansion is expected
Specifications
Base Assembly | polycarbonate resin |
Strut Assembly | 1 5/8" x 13/16" x 12" hot-dipped galvanized |
Height | adjustable from 3 1/2" to 12 7/8" |
Base Dimension | 7 1/2" x 10" |
Foot Print | 75" |
Weight Limit | 172 pounds |
Maximum Pipe Size | 3" |
